Maggiorazione M conica BSPT / F cilindrica BSPP
Temperatura Esercizio: da 0 ºC a 0 ºC
Pressione Esercizio: 60 Bar
Scheda Tecnica: Download PDF
Materiali Costruttivi: Ottone nichelato UNI EN 12164 CW 614N e UNI EN 12165 CW 617N ·
Tubi Utilizzabili:
Tipi Oring: NBR ·
Fluidi Compatibili: Acqua · Aria · Aria Compressa · Fluidi compatibili con i materiali costruttivi · Olio ·
Referenze 1120

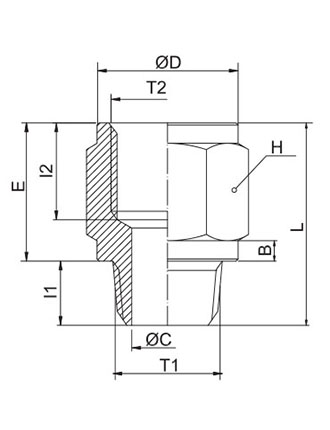

| Codice | T1 | T2 | B | ØC | ØD | I1 | I2 | E | L | H (hex) | Peso | Q.TY | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1120TR18 | R1/8" | G1/8" | 2,0 | 5,5 | 13,5 | 7,5 | 8 | 11,0 | 18,5 | 14 | 12,0 | 100 | ||||||||||||||||||
| 1120TR1814 | R1/8" | G1/4" | 2,0 | 5,5 | 16,5 | 7,5 | 10,5 | 13,5 | 21,0 | 17 | 18,0 | 100 | ||||||||||||||||||
| 1120TR1838 | R1/8" | G3/8" | 2,5 | 5,5 | 21,5 | 7,5 | 10,5 | 14,0 | 21,5 | 22 | 31,0 | 100 | ||||||||||||||||||
| 1120TR14 | R1/4" | G1/4" | 2,0 | 8,5 | 16,5 | 10,5 | 10,5 | 13,5 | 24,0 | 17 | 18,0 | 100 | ||||||||||||||||||
| 1120TR1438 | R1/4" | G3/8" | 2,5 | 8,0 | 21,5 | 10,5 | 10,5 | 14,0 | 24,5 | 22 | 32,0 | 100 | ||||||||||||||||||
| 1120TR1412 | R1/4" | G1/2" | 3,0 | 8,0 | 26,5 | 10,5 | 12,5 | 17,0 | 27,5 | 27 | 52,0 | 100 | ||||||||||||||||||
| 1120TR38 | R3/8" | G3/8" | 2,5 | 11,0 | 21,5 | 10,5 | 10,5 | 14,0 | 24,5 | 22 | 37,0 | 100 | ||||||||||||||||||
| 1120TR3812 | R3/8" | G1/2" | 3,0 | 11,0 | 26,5 | 10,5 | 12,5 | 17,0 | 27,5 | 27 | 55,0 | 50 | ||||||||||||||||||
| 1120TR3834 | R3/8" | G3/4" | 3,0 | 11,0 | 31,5 | 11,0 | 12,5 | 17,0 | 28,0 | 32 | 74,0 | 50 | ||||||||||||||||||
| 1120TR12 | R1/2" | G1/2" | 3,0 | 15,0 | 26,5 | 12,5 | 12,5 | 16,0 | 28,5 | 27 | 54,0 | 50 | ||||||||||||||||||
| 1120TR1234 | R1/2" | G3/4" | 3,0 | 15,0 | 31,5 | 12,5 | 12,5 | 17,0 | 29,5 | 32 | 70,0 | 50 | ||||||||||||||||||
| 1120TR121 | R1/2" | G1" | 3,0 | 15,0 | 37,5 | 13,0 | 12,5 | 18,0 | 31,0 | 38 | 91,0 | 25 | ||||||||||||||||||
| 1120TR34 | R3/4" | G3/4" | 3,0 | 20,0 | 31,5 | 13,0 | 12,5 | 17,0 | 30,0 | 32 | 74,0 | 50 | ||||||||||||||||||
| 1120TR341 | R3/4" | G1" | 3,0 | 20,0 | 37,5 | 13,0 | 12,5 | 18,0 | 31,0 | 38 | 97,0 | 25 | ||||||||||||||||||
| 1120TR1 | R1" | G1" | 3,0 | 26,0 | 37,5 | 15,5 | 12,5 | 18,0 | 33,5 | 38 | 100,0 | 25 |
