T M/F/F
Temperatura Esercizio: da 0 ºC a 0 ºC
Pressione Esercizio: 60 Bar
Scheda Tecnica: Download PDF
Materiali Costruttivi: Ottone nichelato UNI EN 12164 CW 614N e UNI EN 12165 CW 617N ·
Tubi Utilizzabili:
Tipi Oring: NBR ·
Fluidi Compatibili: Acqua · Aria · Aria Compressa · Fluidi compatibili con i materiali costruttivi · Olio ·
Referenze 1245

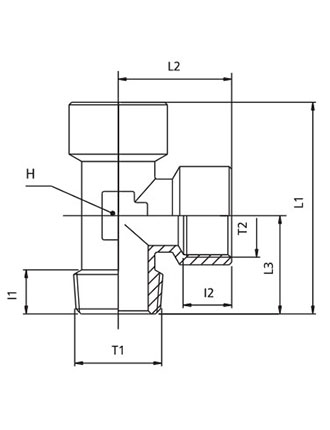

| Codice | T1 | T2 | I1 | I2 | L1 | L2 | L3 | H (hex) | Peso | Q.TY | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1245TRM5 | M5 | M5 | 5,0 | 5,5 | 26,0 | 13,0 | 12,0 | 8 | 9,0 | 100 | ||||||||||||||||||||
| 1245TR18 | R1/8" | G1/8" | 9,5 | 8,0 | 38,5 | 19,5 | 18,5 | 10 | 24,0 | 100 | ||||||||||||||||||||
| 1245TR14 | R1/4" | G1/4" | 11,5 | 11,5 | 49,0 | 25,0 | 24,0 | 13 | 44,0 | 50 | ||||||||||||||||||||
| 1245TR38 | R3/8" | G3/8" | 13,0 | 12,0 | 54,0 | 28,5 | 25,5 | 17 | 74,0 | 50 | ||||||||||||||||||||
| 1245TR12 | R1/2" | G1/2" | 15,0 | 15,0 | 65,5 | 34,5 | 31,0 | 21 | 132,0 | 25 | ||||||||||||||||||||
| 1245TR34 | R3/4" | G3/4" | 16,0 | 16,5 | 69,5 | 36,5 | 33,0 | 25 | 172,0 | 10 | ||||||||||||||||||||
| 1245TR1 | R1" | G1" | 17,5 | 19,0 | 84,0 | 45,0 | 39,0 | 30 | 298,0 | 10 |
