Regolatore di flusso a cacciavite orientabile cilindrico BSPP & metrico bidirezionale
Temperatura Esercizio: da -20 ºC a 70 ºC
Pressione Esercizio: 50 Bar
Scheda Tecnica: Download PDF
Materiali Costruttivi: Ottone UNI EN 12164 CW 614N e UNI EN 12164 CW 617N. Nichelatura a norma NSF ·
Tubi Utilizzabili: Tubo Poliammide · Tubo Polietilene · Tubo Poliuretano ·
Tipi Oring:
Fluidi Compatibili: Aria · Fluidi compatibili con i materiali costruttivi ·
Referenze OTSC-G-D-B

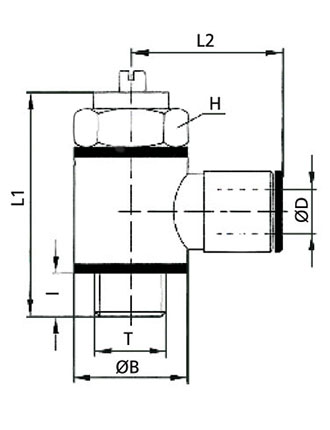

| Codice | ØD | T | I | ØB | L1 | L2 | H (hex) | Nl/min | Peso | Q.TY | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTSC04G01DB | 4 | G1/8" | 5,0 | 14,0 | 32,0 | 20,5 | 14 | 310 | 31,0 | 50 | ||||||||||||||||||||
| OTSC04M5DB | 4 | M5 | 4,0 | 9,0 | 25,0 | 18,0 | 8 | 45 | 14,0 | 50 | ||||||||||||||||||||
| OTSC06G01DB | 6 | G1/8" | 5,0 | 14,0 | 32,0 | 23,0 | 14 | 390 | 33,0 | 50 | ||||||||||||||||||||
| OTSC06G02DB | 6 | G1/4" | 6,0 | 18,0 | 37,0 | 24,0 | 17 | 710 | 55,0 | 50 | ||||||||||||||||||||
| OTSC06M5DB | 6 | M5 | 4,0 | 9,0 | 25,0 | 19,5 | 8 | 45 | 15,5 | 50 | ||||||||||||||||||||
| OTSC08G01DB | 8 | G1/8" | 5,0 | 14,0 | 32,0 | 24,5 | 14 | 390 | 34,0 | 50 | ||||||||||||||||||||
| OTSC08G02DB | 8 | G1/4" | 6,0 | 18,0 | 37,0 | 26,0 | 17 | 810 | 56,0 | 50 | ||||||||||||||||||||
| OTSC08G03DB | 8 | G3/8" | 6,5 | 21,0 | 46,5 | 27,0 | 20 | 1050 | 87,0 | 25 | ||||||||||||||||||||
| OTSC10G02DB | 10 | G1/4" | 6,0 | 18,0 | 37,0 | 27,0 | 17 | 810 | 58,5 | 25 |
