T laterale maschio girevole conico BSPT nichelato

Temperatura Esercizio: da 0 ºC a 60 ºC

Pressione Esercizio: 10 Bar

Scheda Tecnica: Download PDF

Materiali Costruttivi: Ottone nichelato e PBT ·

Tubi Utilizzabili: Tubo Poliammide · Tubo Poliuretano ·

Tipi Oring: NBR senza silicone ·

Fluidi Compatibili: Aria Compressa · Vuoto ·

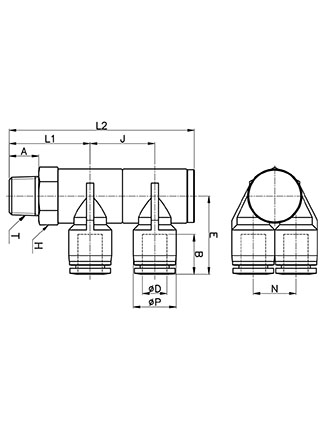

Disegno Tecnico PAT-D T laterale maschio girevole conico BSPT nichelato

Referenze PAT-D

Codice ØDØPTL1L2NEABJH (hex)PassaggioPesoQ.TY
PAT-D04R01N410,5R1/8"22,551,810,521,48,014,817,9143,240,025
PAT-D04R02N410,5R1/4"27,562,810,522,910,014,821,9173,262,025
PAT-D04R03N410,5R3/8"29,064,810,526,111,014,821,9213,295,016
PAT-D04R04N410,5R1/2"34,173,410,527,714,014,823,9243,2139,012
PAT-D06R01N612,5R1/8"22,551,812,522,98,016,417,9144,043,025
PAT-D06R02N612,5R1/4"27,562,812,524,810,016,421,9175,053,012
PAT-D06R03N612,5R3/8"29,064,812,526,611,016,421,9215,097,012
PAT-D06R04N612,5R1/2"34,173,412,528,614,016,423,9245,0141,09
PAT-D08R01N814,5R1/8"22,551,814,524,88,018,317,9145,048,016
PAT-D08R02N814,5R1/4"27,562,814,526,610,018,321,9176,070,012
PAT-D08R03N814,5R3/8"29,064,814,528,211,018,321,9217,0103,09
PAT-D08R04N814,5R1/2"34,173,414,530,314,018,323,9246,0146,09
PAT-D10R01N1017,5R1/8"22,551,817,526,78,020,217,9145,068,012
PAT-D10R02N1017,5R1/4"27,562,817,528,210,020,221,9178,078,09
PAT-D10R03N1017,5R3/8"29,064,817,530,211,020,221,9216,0110,09
PAT-D10R04N1017,5R1/2"34,173,417,532,614,020,223,9247,0154,06
PAT-D12R02N1220,5R1/4"27,562,820,531,110,022,921,9178,091,09
PAT-D12R03N1220,5R3/8"29,064,820,532,911,022,921,9218,0122,06
PAT-D12R04N1220,5R1/2"34,173,420,535,214,022,923,9248,0167,04
