Gomito maschio girevole conico BSPT nichelato
Temperatura Esercizio: da 0 ºC a 60 ºC
Pressione Esercizio: 10 Bar
Scheda Tecnica: Download PDF
Materiali Costruttivi: Ottone nichelato e PBT ·
Tubi Utilizzabili: Tubo Poliammide PA12 · Tubo Poliuretano a base poliestere ·
Tipi Oring: NBR senza silicone ·
Fluidi Compatibili: Aria · Aria Compressa · Vuoto ·
Referenze PL

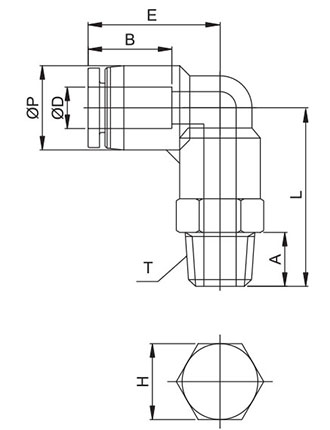

| Codice | ØD | ØP | T | L | E | A | B | H (hex) | Passaggio | Peso | Q.TY | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PL16R03N | 16 | 25,5 | R3/8" | 42,8 | 32,8 | 11,0 | 24,1 | 24,0 | 10,0 | 69,0 | 20 | |||||||||||||||||||
| PL16R04N | 16 | 25,5 | R1/2" | 45,8 | 32,8 | 14,0 | 24,1 | 24,0 | 13,0 | 77,0 | 20 | |||||||||||||||||||
| PL04R01N | 4 | 10,5 | R1/8" | 24,5 | 18,5 | 8,0 | 14,8 | 10 | 3,0 | 10,0 | 100 | |||||||||||||||||||
| PL04R02N | 4 | 10,5 | R1/4" | 26,5 | 18,5 | 10,0 | 14,8 | 14 | 3,0 | 15,0 | 100 | |||||||||||||||||||
| PL04R03N | 4 | 10,5 | R3/8" | 27,5 | 18,5 | 11,0 | 14,8 | 17 | 3,0 | 26,0 | 50 | |||||||||||||||||||
| PL06R01N | 6 | 12,5 | R1/8" | 26,5 | 20,3 | 8,0 | 16,4 | 12 | 4,0 | 13,0 | 100 | |||||||||||||||||||
| PL06R02N | 6 | 12,5 | R1/4" | 29,5 | 20,3 | 10,0 | 16,4 | 14 | 4,0 | 19,0 | 100 | |||||||||||||||||||
| PL06R03N | 6 | 12,5 | R3/8" | 30,5 | 20,3 | 11,0 | 16,4 | 17 | 4,0 | 27,0 | 50 | |||||||||||||||||||
| PL06R04N | 6 | 12,5 | R1/2" | 33,5 | 20,3 | 14,0 | 16,4 | 21 | 4,0 | 39,0 | 50 | |||||||||||||||||||
| PL08R01N | 8 | 14,8 | R1/8" | 28,0 | 22,9 | 8,0 | 18,3 | 14 | 6,0 | 18,0 | 50 | |||||||||||||||||||
| PL08R02N | 8 | 14,8 | R1/4" | 31,0 | 22,9 | 10,0 | 18,3 | 14 | 6,0 | 22,0 | 50 | |||||||||||||||||||
| PL08R03N | 8 | 14,8 | R3/8" | 32,0 | 22,9 | 11,0 | 18,3 | 17 | 6,0 | 27,0 | 50 | |||||||||||||||||||
| PL08R04N | 8 | 14,8 | R1/2" | 35,0 | 22,9 | 14,0 | 18,3 | 21 | 6,0 | 43,0 | 50 | |||||||||||||||||||
| PL10R01N | 10 | 17,5 | R1/8" | 28,5 | 24,6 | 8,0 | 20,2 | 17,0 | 6,0 | 26,0 | 50 | |||||||||||||||||||
| PL10R02N | 10 | 17,5 | R1/4" | 31,5 | 24,6 | 10,0 | 20,2 | 17,0 | 8,0 | 28,0 | 50 | |||||||||||||||||||
| PL10R03N | 10 | 17,5 | R3/8" | 32,5 | 24,6 | 11,0 | 20,2 | 17,0 | 8,0 | 30,0 | 50 | |||||||||||||||||||
| PL10R04N | 10 | 17,5 | R1/2" | 35,5 | 24,6 | 14,0 | 20,2 | 21,0 | 8,0 | 48,0 | 25 | |||||||||||||||||||
| PL12R01N | 12 | 20,5 | R1/8" | 32,4 | 28,7 | 8,0 | 22,9 | 19,0 | 6,0 | 42,0 | 25 | |||||||||||||||||||
| PL12R02N | 12 | 20,5 | R1/4" | 34,4 | 28,7 | 10,0 | 22,9 | 19,0 | 9,0 | 40,0 | 25 | |||||||||||||||||||
| PL12R03N | 12 | 20,5 | R3/8" | 35,4 | 28,7 | 11,0 | 22,9 | 19,0 | 10,0 | 43,0 | 25 | |||||||||||||||||||
| PL12R04N | 12 | 20,5 | R1/2" | 38,4 | 28,7 | 14,0 | 22,9 | 21,0 | 10,0 | 52,0 | 25 | |||||||||||||||||||
| PL14R03N | 14 | 23,3 | R3/8" | 38,0 | 31,4 | 11,0 | 23,7 | 22,0 | 11,0 | 50,0 | 20 | |||||||||||||||||||
| PL14R04N | 14 | 23,3 | R1/2" | 41,0 | 31,4 | 12,0 | 23,7 | 22,0 | 12,0 | 60,0 | 20 |
