T laterale maschio girevole conico BSPT nichelato
Temperatura Esercizio: da 0 ºC a 60 ºC
Pressione Esercizio: 10 Bar
Scheda Tecnica: Download PDF
Materiali Costruttivi:
Tubi Utilizzabili: Tubo Poliammide PA12 · Tubo Poliuretano a base poliestere ·
Tipi Oring: NBR senza silicone ·
Fluidi Compatibili: Aria · Aria Compressa · Vuoto ·
Referenze PST

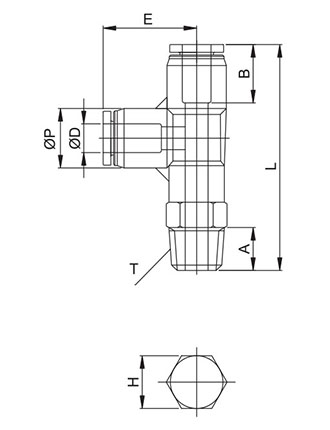

| Codice | ØD | ØP | T | L | E | A | B | H (hex) | Passaggio | Peso | Q.TY | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PST04R01N | 4 | 10,6 | R1/8" | 45,0 | 19,5 | 8,0 | 14,8 | 10 | 3,0 | 12,0 | 100 | |||||||||||||||||||
| PST04R02N | 4 | 10,6 | R1/4" | 47,0 | 19,5 | 10,0 | 14,8 | 14 | 3,0 | 18,0 | 100 | |||||||||||||||||||
| PST04R03N | 4 | 10,6 | R3/8" | 48,0 | 19,5 | 11,0 | 14,8 | 17 | 3,0 | 27,0 | 50 | |||||||||||||||||||
| PST06R01N | 6 | 13,0 | R1/8" | 48,4 | 21,4 | 8,0 | 16,4 | 12 | 4,0 | 19,0 | 50 | |||||||||||||||||||
| PST06R02N | 6 | 13,0 | R1/4" | 51,4 | 21,4 | 10,0 | 16,4 | 14 | 4,0 | 23,0 | 50 | |||||||||||||||||||
| PST06R03N | 6 | 13,0 | R3/8" | 52,4 | 21,4 | 11,0 | 16,4 | 17 | 4,0 | 31,0 | 50 | |||||||||||||||||||
| PST06R04N | 6 | 13,0 | R1/2" | 55,4 | 21,4 | 14,0 | 16,4 | 21 | 4,0 | 56,0 | 25 | |||||||||||||||||||
| PST08R01N | 8 | 15,0 | R1/8" | 52,1 | 23,4 | 8,0 | 18,3 | 14 | 6,0 | 17,0 | 50 | |||||||||||||||||||
| PST08R02N | 8 | 15,0 | R1/4" | 55,1 | 23,4 | 10,0 | 18,3 | 14 | 6,0 | 25,0 | 50 | |||||||||||||||||||
| PST08R03N | 8 | 15,0 | R3/8" | 56,1 | 23,4 | 11,0 | 18,3 | 17 | 6,0 | 30,0 | 50 | |||||||||||||||||||
| PST08R04N | 8 | 15,0 | R1/2" | 59,1 | 23,4 | 14,0 | 18,3 | 21 | 6,0 | 54,0 | 25 | |||||||||||||||||||
| PST10R01N | 10 | 18,0 | R1/8" | 55,8 | 25,8 | 8,0 | 20,2 | 17 | 6,0 | 34,0 | 25 | |||||||||||||||||||
| PST10R02N | 10 | 18,0 | R1/4" | 58,8 | 25,8 | 10,0 | 20,2 | 17 | 8,0 | 36,0 | 25 | |||||||||||||||||||
| PST10R03N | 10 | 18,0 | R3/8" | 59,8 | 25,8 | 11,0 | 20,2 | 17 | 8,0 | 38,0 | 25 | |||||||||||||||||||
| PST10R04N | 10 | 18,0 | R1/2" | 62,8 | 25,8 | 14,0 | 20,2 | 21 | 8,0 | 60,0 | 25 | |||||||||||||||||||
| PST12R01N | 12 | 20,8 | R1/8" | 63,1 | 30,2 | 8,0 | 22,9 | 19 | 6,0 | 51,0 | 25 | |||||||||||||||||||
| PST12R02N | 12 | 20,8 | R1/4" | 65,1 | 30,2 | 10,0 | 22,9 | 19 | 9,0 | 50,0 | 25 | |||||||||||||||||||
| PST12R03N | 12 | 20,8 | R3/8" | 66,1 | 30,2 | 11,0 | 22,9 | 19 | 10,0 | 52,0 | 25 | |||||||||||||||||||
| PST12R04N | 12 | 20,8 | R1/2" | 69,1 | 30,2 | 14,0 | 22,9 | 21 | 10,0 | 66,0 | 20 |
