Male connector BSPP thread
Temperature Operating: from -20 ºC to 90 ºC
Working Pressure: 60 Bar
Technical data sheet: Download PDF
Construction Materials: brass ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis ·
Types Oring:
Compatible Fluids: air · compressed air · fluid suitable with construction materials · oil ·
References 3120

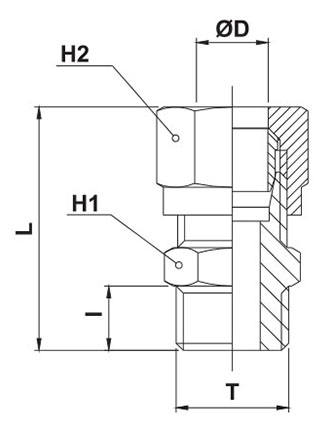

| Code | T | ØD | I | L | H1 (hex) | H2 (hex) | Weight | Q.TY | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3120TR184 | G1/8" | 4 | 6,0 | 25,0 | 14 | 10 | 16,0 | 100 | ||||||||||||||||||||||
| 3120TR186 | G1/8" | 6 | 6,0 | 26,0 | 14 | 12 | 16,0 | 100 | ||||||||||||||||||||||
| 3120TR146 | G1/4" | 6 | 8,0 | 29,5 | 17 | 12 | 24,0 | 100 | ||||||||||||||||||||||
| 3120TR188 | G1/8" | 8 | 6,0 | 27,5 | 14 | 14 | 18,0 | 100 | ||||||||||||||||||||||
| 3120TR148 | G1/4" | 8 | 8,0 | 30,0 | 17 | 14 | 28,0 | 50 | ||||||||||||||||||||||
| 3120TR388 | G3/8" | 8 | 9,0 | 30,5 | 19 | 14 | 34,0 | 25 | ||||||||||||||||||||||
| 3120TR1410 | G1/4" | 10 | 8,0 | 34,5 | 17 | 19 | 44,0 | 50 | ||||||||||||||||||||||
| 3120TR3810 | G3/8" | 10 | 9,0 | 36,0 | 19 | 19 | 50,0 | 50 |
