Female elbow BSPP thread
Temperature Operating: from -20 ºC to 90 ºC
Working Pressure: 60 Bar
Technical data sheet: Download PDF
Construction Materials: brass ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis ·
Types Oring:
Compatible Fluids: air · compressed air · fluid suitable with construction materials · oil ·
References 3150

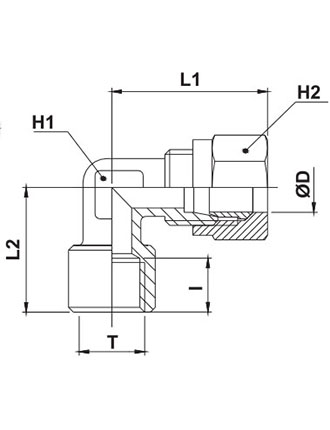

| Code | T | ØD | I | L1 | L2 | H1 (hex) | H2 (hex) | Weight | Q.TY | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3150TR184 | G1/8" | 4 | 8,0 | 22,0 | 20,0 | 9 | 10 | 18,0 | 50 | |||||||||||||||||||||
| 3150TR186 | G1/8" | 6 | 8,0 | 24,0 | 20,0 | 9 | 12 | 20,0 | 50 | |||||||||||||||||||||
| 3150TR146 | G1/4" | 6 | 11,0 | 27,0 | 25,5 | 13 | 12 | 39,0 | 50 | |||||||||||||||||||||
| 3150TR188 | G1/8" | 8 | 8,0 | 24,0 | 20,0 | 11 | 14 | 26,0 | 50 | |||||||||||||||||||||
| 3150TR148 | G1/4" | 8 | 11,0 | 27,5 | 25,5 | 13 | 14 | 40,0 | 50 |
