Locking nut
Temperature Operating: from -20 ºC to 90 ºC
Working Pressure: 60 Bar
Technical data sheet: Download PDF
Construction Materials: brass ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis ·
Types Oring:
Compatible Fluids: air · compressed air · fluid suitable with construction materials · oil ·
References 3230

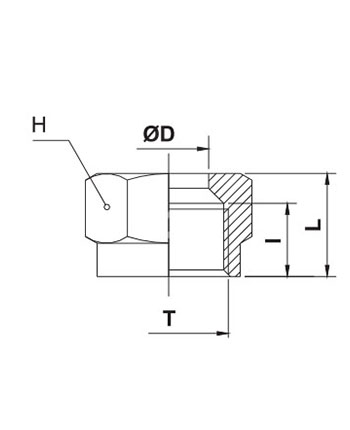

| Code | T | ØD | I | L | H (hex) | Weight | Q.TY | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3230TRM814 | M8x1 | 4 | 7,5 | 11,0 | 10 | 4,2 | 100 | |||||||||||||||||||||||
| 3230TRM1016 | M10x1 | 6 | 8,5 | 11,5 | 12 | 5,4 | 100 | |||||||||||||||||||||||
| 3230TRM1218 | M12x1 | 8 | 9,0 | 12,0 | 14 | 7,0 | 100 | |||||||||||||||||||||||
| 3230TRM161510 | M16x1,5 | 10 | 11,5 | 15,5 | 19 | 18,2 | 100 | |||||||||||||||||||||||
| 3230TRM181512 | M18x1,5 | 12 | 11,5 | 15,5 | 22 | 25,0 | 100 | |||||||||||||||||||||||
| 3230TRM221514 | M22x1,5 | 14 | 12,0 | 17,5 | 27 | 44,3 | 50 | |||||||||||||||||||||||
| 3230TRM221515 | M22x1,5 | 15 | 12,0 | 17,0 | 27 | 41,1 | 50 | |||||||||||||||||||||||
| 3230TRM241516 | M24x1,5 | 16 | 12,0 | 17,5 | 30 | 55,6 | 50 | |||||||||||||||||||||||
| 3230TRM261518 | M26x1,5 | 18 | 12,5 | 18,5 | 32 | 64,2 | 50 |
