Aluminum tee cross
Temperature Operating: from -10 ºC to 80 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: aluminum ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · fluid suitable with construction materials · oil ·
References 4100

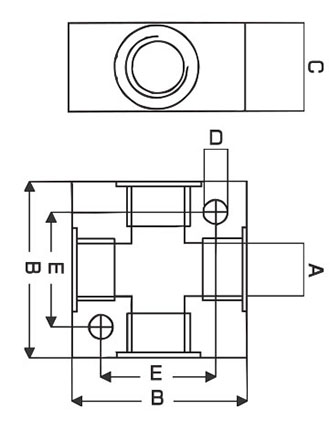

| Code | A | B | C | D | E | Weight | Q.TY | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4100TR12 | G1/2" | 50,0 | 30,0 | 5,5 | 34,0 | 129,0 | 10 | |||||||||||||||||||||||
| 4100TR14 | G1/4" | 40,0 | 20,0 | 5,5 | 26,0 | 60,0 | 10 | |||||||||||||||||||||||
| 4100TR18 | G1/8" | 25,0 | 16,0 | 4,5 | 17,0 | 17,5 | 10 | |||||||||||||||||||||||
| 4100TR38 | G3/8" | 40,0 | 25,0 | 5,5 | 26,0 | 70,0 | 10 |
