Aluminum single distribution manifold
Temperature Operating: from -10 ºC to 80 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: aluminum ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · fluid suitable with construction materials · oil ·
References 4150

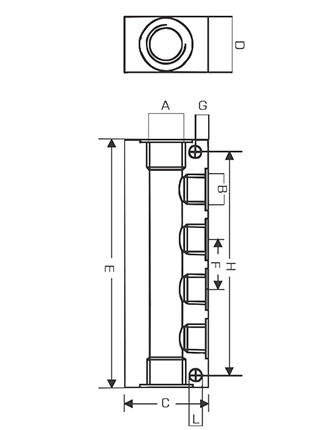

| Code | A | B | C | D | E | F | G | H | L | Weight | Q.TY | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4150TR12122 | G1/2" | G1/2"-2 | 50,0 | 30,0 | 102,0 | 34,0 | 6,5 | 83,0 | 5,5 | 292,0 | 5 | |||||||||||||||||||
| 4150TR12123 | G1/2" | G1/2"-3 | 50,0 | 30,0 | 136,0 | 34,0 | 6,5 | 117,0 | 5,5 | 392,0 | 5 | |||||||||||||||||||
| 4150TR12124 | G1/2" | G1/2"-4 | 50,0 | 30,0 | 170,0 | 34,0 | 6,5 | 151,0 | 5,5 | 488,0 | 5 | |||||||||||||||||||
| 4150TR12125 | G1/2" | G1/2"-5 | 50,0 | 30,0 | 204,0 | 34,0 | 6,5 | 185,0 | 5,5 | 584,0 | 5 | |||||||||||||||||||
| 4150TR12126 | G1/2" | G1/2"-6 | 50,0 | 30,0 | 238,0 | 34,0 | 6,5 | 219,0 | 5,5 | 682,0 | 5 | |||||||||||||||||||
| 4150TR12382 | G1/2" | G3/8"-2 | 50,0 | 30,0 | 78,0 | 26,0 | 6,5 | 59,0 | 5,5 | 228,0 | 5 | |||||||||||||||||||
| 4150TR12383 | G1/2" | G3/8"-3 | 50,0 | 30,0 | 104,0 | 26,0 | 6,5 | 85,0 | 5,5 | 304,0 | 5 | |||||||||||||||||||
| 4150TR12384 | G1/2" | G3/8"-4 | 50,0 | 30,0 | 130,0 | 26,0 | 6,5 | 111,0 | 5,5 | 380,0 | 5 | |||||||||||||||||||
| 4150TR12385 | G1/2" | G3/8"-5 | 50,0 | 30,0 | 156,0 | 26,0 | 6,5 | 137,0 | 5,5 | 456,0 | 5 | |||||||||||||||||||
| 4150TR12386 | G1/2" | G3/8"-6 | 50,0 | 30,0 | 182,0 | 26,0 | 6,5 | 163,0 | 5,5 | 530,0 | 5 | |||||||||||||||||||
| 4150TR14182 | G1/4" | G1/8"-2 | 30,0 | 20,0 | 54,0 | 18,0 | 4,5 | 45,0 | 4,5 | 64,0 | 5 | |||||||||||||||||||
| 4150TR14183 | G1/4" | G1/8"-3 | 30,0 | 20,0 | 72,0 | 18,0 | 4,5 | 63,0 | 4,5 | 86,0 | 5 | |||||||||||||||||||
| 4150TR14184 | G1/4" | G1/8"-4 | 30,0 | 20,0 | 90,0 | 18,0 | 4,5 | 81,0 | 4,5 | 110,0 | 5 | |||||||||||||||||||
| 4150TR14185 | G1/4" | G1/8"-5 | 30,0 | 20,0 | 108,0 | 18,0 | 4,5 | 99,0 | 4,5 | 130,0 | 5 | |||||||||||||||||||
| 4150TR14186 | G1/4" | G1/8"-6 | 30,0 | 20,0 | 126,0 | 18,0 | 4,5 | 117,0 | 4,5 | 154,0 | 5 | |||||||||||||||||||
| 4150TR18M52 | G1/8" | M5-2 | 25,0 | 16,0 | 45,0 | 15,0 | 3,5 | 33,0 | 4,5 | 38,0 | 5 | |||||||||||||||||||
| 4150TR18M53 | G1/8" | M5-3 | 25,0 | 16,0 | 60,0 | 15,0 | 3,5 | 48,0 | 4,5 | 50,0 | 5 | |||||||||||||||||||
| 4150TR18M54 | G1/8" | M5-4 | 25,0 | 16,0 | 75,0 | 15,0 | 3,5 | 63,0 | 4,5 | 64,0 | 5 | |||||||||||||||||||
| 4150TR18M55 | G1/8" | M5-5 | 25,0 | 16,0 | 90,0 | 15,0 | 3,5 | 78,0 | 4,5 | 79,0 | 5 | |||||||||||||||||||
| 4150TR18M56 | G1/8" | M5-6 | 25,0 | 16,0 | 105,0 | 15,0 | 3,5 | 93,0 | 4,5 | 90,0 | 5 | |||||||||||||||||||
| 4150TR38142 | G3/8" | G1/4"-2 | 40,0 | 25,0 | 68,0 | 24,0 | 4,5 | 51,0 | 5,5 | 136,0 | 5 | |||||||||||||||||||
| 4150TR38143 | G3/8" | G1/4"-3 | 40,0 | 25,0 | 92,0 | 24,0 | 4,5 | 75,0 | 5,5 | 184,0 | 5 | |||||||||||||||||||
| 4150TR38144 | G3/8" | G1/4"-4 | 40,0 | 25,0 | 116,0 | 24,0 | 4,5 | 99,0 | 5,5 | 238,0 | 5 | |||||||||||||||||||
| 4150TR38145 | G3/8" | G1/4"-5 | 40,0 | 25,0 | 140,0 | 24,0 | 4,5 | 123,0 | 5,5 | 298,0 | 5 | |||||||||||||||||||
| 4150TR38146 | G3/8" | G1/4"-6 | 40,0 | 25,0 | 164,0 | 24,0 | 4,5 | 147,0 | 5,5 | 338,0 | 5 |
