Cone-shaped silencer of sinterized spherical bronze riveted on hexagonal brass base
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 10 Bar
Technical data sheet: Download PDF
Construction Materials: brass · sinterized bronze ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air ·
References 6200

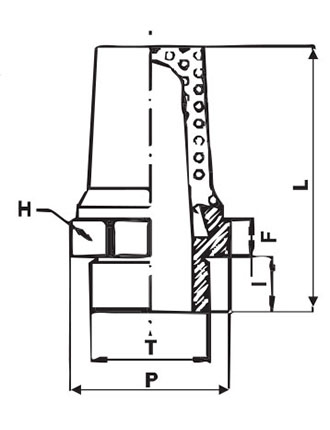

| Code | T | Ø | ØP | C | B | I | F | L | H (hex) | Weight | Q.TY | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6200TR1 | G1" | 26,0 | 35,0 | 30,5 | 26,5 | 10,0 | 6,0 | 66,0 | 36 | 134,0 | 20 | |||||||||||||||||||
| 6200TR12 | G1/2" | 15,0 | 22,5 | 18,0 | 16,0 | 8,0 | 6,0 | 46,0 | 24 | 46,5 | 50 | |||||||||||||||||||
| 6200TR14 | G1/4" | 8,5 | 14,5 | 10,5 | 9,0 | 6,0 | 5,0 | 34,0 | 16 | 16,5 | 100 | |||||||||||||||||||
| 6200TR18 | G1/8" | 6,0 | 12,5 | 8,5 | 8,0 | 6,0 | 4,0 | 26,0 | 13 | 9,5 | 100 | |||||||||||||||||||
| 6200TR34 | G3/4" | 20,0 | 28,5 | 25,5 | 21,0 | 10,0 | 6,0 | 56,0 | 30 | 81,5 | 25 | |||||||||||||||||||
| 6200TR38 | G3/8" | 11,5 | 19,0 | 13,0 | 12,0 | 8,0 | 5,0 | 41,0 | 19 | 26,5 | 50 | |||||||||||||||||||
| 6200TRM5 | M5 | 2,5 | 7,5 | 4,0 | 3,0 | 3,5 | 4,0 | 18,5 | 8 | 2,5 | 100 |
