Micro ball valve M/F black lever
Temperature Operating: from -5 ºC to 70 ºC
Working Pressure: 10 Bar
Technical data sheet: Download PDF
Construction Materials:
Usable tubes:
Types Oring: NBR 70 ·
Compatible Fluids: compressed air · fluid suitable with construction materials · gas ·
References 9162

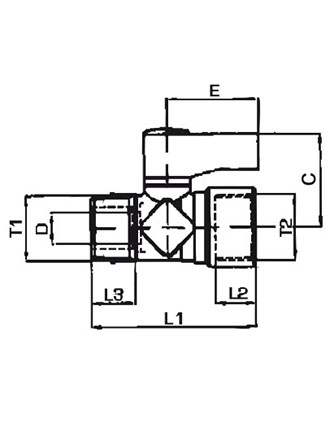

| Code | T1 | T2 | D | E | C | L1 | L2 | L3 | Weight | Q.TY | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9162TR12 | R1/2" | G1/2" | 10 | 24 | 27 | 50 | 12,0 | 15,0 | 87,0 | 30 | ||||||||||||||||||||
| 9162TR14 | R1/4" | G1/4" | 6 | 24 | 23 | 39 | 9,5 | 11,0 | 36,0 | 30 | ||||||||||||||||||||
| 9162TR18 | R1/8" | G1/8" | 6 | 24 | 23 | 34 | 8,0 | 7,5 | 32,0 | 30 | ||||||||||||||||||||
| 9162TR38 | R3/8" | G3/8" | 8 | 24 | 24 | 43 | 10,5 | 11,5 | 51,0 | 30 |
