Full bore universal ball valve with geared 360-degree action for potable water according to the certification below, threaded ends F/F UNI ISO 7/1 Rp
Temperature Operating: from -10 ºC to 90 ºC
Working Pressure: 25 Bar
Technical data sheet: Download PDF
Construction Materials: brass ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · fluid suitable with construction materials ·
References 9204

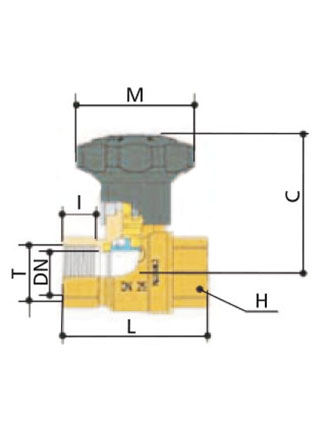

| Code | T | DN | L | M | I | C | H (hex) | Weight | Q.TY | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9204TR1 | G1" | 25 | 83 | 70 | 19 | 75 | 38 | 576 | 1 | |||||||||||||||||||||
| 9204TR112 | G1"-1/2" | 40 | 104 | 112 | 21 | 109 | 55 | 1344 | 1 | |||||||||||||||||||||
| 9204TR114 | G1"-1/4" | 32 | 92 | 70 | 21 | 80 | 48 | 870 | 1 | |||||||||||||||||||||
| 9204TR12 | G1/2" | 15 | 63 | 70 | 15 | 66 | 26 | 274 | 1 | |||||||||||||||||||||
| 9204TR2 | G2" | 50 | 124 | 112 | 26 | 115 | 68 | 2030 | 1 | |||||||||||||||||||||
| 9204TR34 | G3/4" | 20 | 71 | 70 | 16 | 68 | 31 | 364 | 1 |
