Full bore universal ball valve, threaded ends BSPP M/M - blue lever
Temperature Operating: from -20 ºC to 160 ºC
Working Pressure: 0 Bar
Technical data sheet: Download PDF
Construction Materials: brass ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · fluid suitable with construction materials ·
References 9230

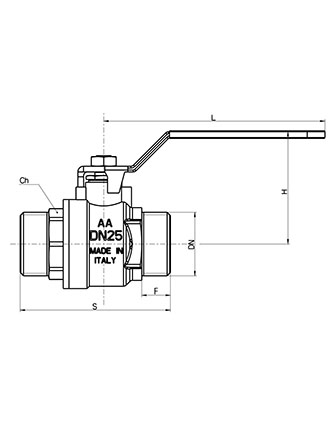

| Code | T | DN | PN (Bar) | F | S | C | L | H (hex) | Weight | Q.TY | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9230TR1 | G1" | 25 | 40 | 15 | 79 | 66 | 115 | 38 | 430,0 | 1 | ||||||||||||||||||||
| 9230TR112 | G1"-1/2" | 40 | 32 | 18 | 102 | 72 | 150 | 54 | 1150,0 | 1 | ||||||||||||||||||||
| 9230TR114 | G1"-1/4" | 32 | 40 | 17 | 91 | 61 | 115 | 47 | 780,0 | 1 | ||||||||||||||||||||
| 9230TR12 | G1/2" | 15 | 50 | 11 | 58 | 54 | 92 | 25 | 190,0 | 1 | ||||||||||||||||||||
| 9230TR14 | G1/4" | 10 | 50 | 9 | 52 | 35 | 80 | 17 | 120,0 | 1 | ||||||||||||||||||||
| 9230TR2 | G2" | 50 | 32 | 20,5 | 118 | 77 | 150 | 66 | 1700,0 | 1 | ||||||||||||||||||||
| 9230TR34 | G3/4" | 20 | 50 | 13 | 66 | 58 | 92 | 31 | 275,0 | 1 | ||||||||||||||||||||
| 9230TR38 | G3/8" | 10 | 50 | 9 | 52 | 41 | 80 | 20 | 120,0 | 1 |
