Full bore universal ball valve, thraeded ends M/M - blue butterfly lever
Temperature Operating: from -20 ºC to 160 ºC
Working Pressure: 0 Bar
Technical data sheet: Download PDF
Construction Materials: brass ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · fluid suitable with construction materials ·
References 9260

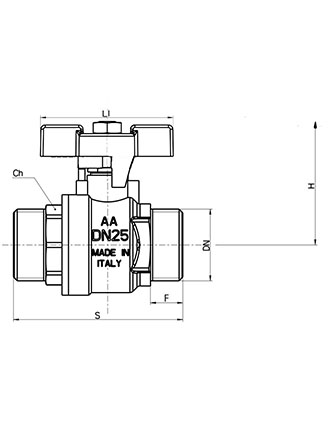

| Code | T | DN | PN (Bar) | F | S | C | L1 | H (hex) | Weight | Q.TY | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9260TR1 | G1" | 25 | 40 | 15 | 79 | 66 | 72 | 38 | 463,0 | 1 | ||||||||||||||||||||
| 9260TR12 | G1/2" | 15 | 50 | 11 | 58 | 54 | 61 | 25 | 170,0 | 1 | ||||||||||||||||||||
| 9260TR14 | G1/4" | 10 | 50 | 9 | 52 | 35 | 50 | 17 | 120,0 | 1 | ||||||||||||||||||||
| 9260TR34 | G3/4" | 20 | 50 | 13 | 66 | 58 | 61 | 31 | 260,0 | 1 | ||||||||||||||||||||
| 9260TR38 | G3/8" | 10 | 50 | 9 | 52 | 41 | 50 | 20 | 120,0 | 1 |
