Safety valve set
Temperature Operating: from -10 ºC to 80 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: Yellow brass UNI EN 12164 CW 614N ·
Usable tubes:
Types Oring: NBR · viton ·
Compatible Fluids: air · gas ·
References 9613

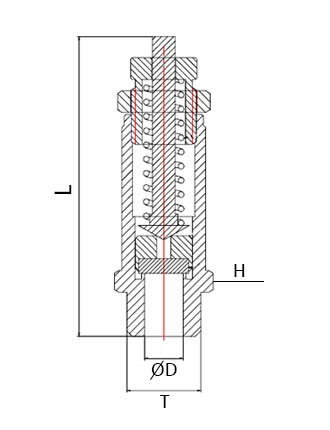

| Code | T | ØD | H (hex) | L | Weight | Q.TY | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9613TR12 | G1/2" | 11 | 22 | 65 | 96,0 | 10 | ||||||||||||||||||||||||
| 9613TR14 | G1/4" | 7 | 15 | 50 | 35,0 | 10 | ||||||||||||||||||||||||
| 9613TR38 | G3/8" | 11 | 20 | 63 | 83,0 | 10 |
