Male quick coupler with seal level
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 200 Bar
Technical data sheet: Download PDF
Construction Materials: yellow brass ·
Usable tubes:
Types Oring: NBR · viton ·
Compatible Fluids:
References ACRHL12-M-G-C

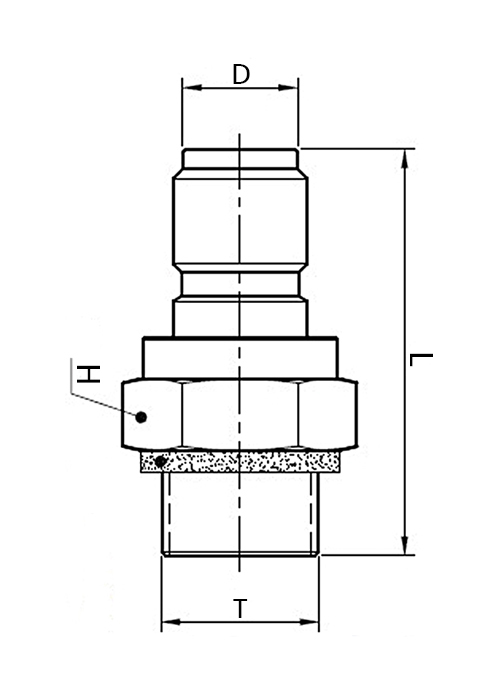

| Code | T | D | L | H | Q.TY | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACRHL12-M12G-303C | G1/2" | 15,3 | 54 | 27 | 1 | |||||||||||||||||||||||||
| ACRHL12-M12G-316C | G1/2" | 15,3 | 54 | 27 | 1 | |||||||||||||||||||||||||
| ACRHL12-M12GC | G1/2" | 15,3 | 54 | 27 | 1 |
