Connection with push-on fitting
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 35 Bar
Technical data sheet: Download PDF
Construction Materials: nickel-plated steel ·
Usable tubes:
Types Oring: EPDM · NBR · silicon · viton ·
Compatible Fluids: compressed air · not aggressive and not oxidant fluids ·
References AEU-75PM

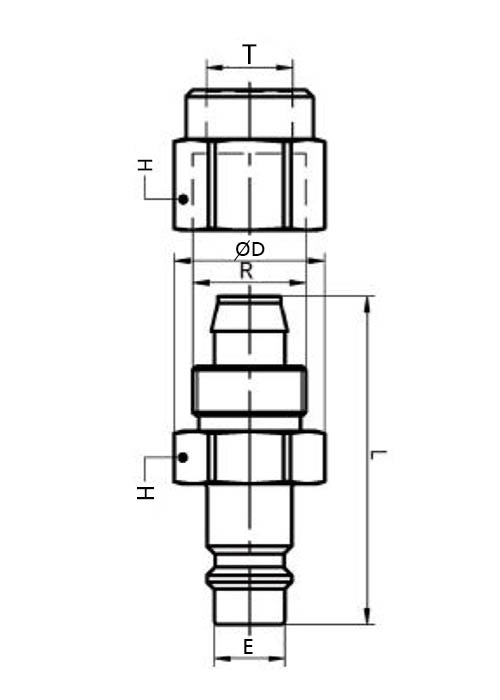

| Code | T | E | R | L | H | Q.TY | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AEU-75PM08 | 8x12 | M16x1 | 10 | 46,7 | 19 | |||||||||||||||||||||||||
| AEU-75PM10 | 10x15 | M20x1 | 10 | 51,5 | 22 |
