Joint push-on fitting
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 35 Bar
Technical data sheet: Download PDF
Construction Materials: nickel-plated steel ·
Usable tubes:
Types Oring: EPDM · NBR · silicon · viton ·
Compatible Fluids: compressed air · not aggressive and not oxidant fluids ·
References EU-75N-PM

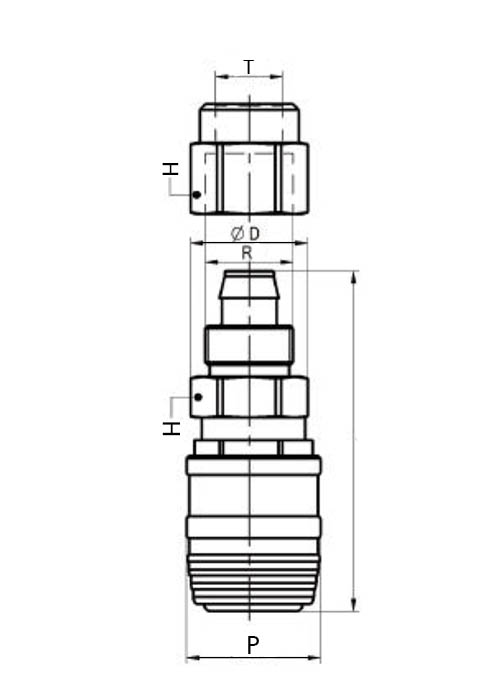

| Code | T | D | R | P | L | H | Q.TY | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EU-75N-PM08 | 8x12 | M16x1 | 24,4 | 61,9 | 19 | |||||||||||||||||||||||||
| EU-75N-PM10 | 10x15 | M20x1 | 24,4 | 62,6 | 22 |
