Locking clip
Temperature Operating: from 1 ºC to 98 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: POM ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA ·
Types Oring: EPDM suitable for food contact ·
Compatible Fluids: air · beverages · compressed air · food fluids suitable with construction materials · gas · potable water · water ·
References HCP

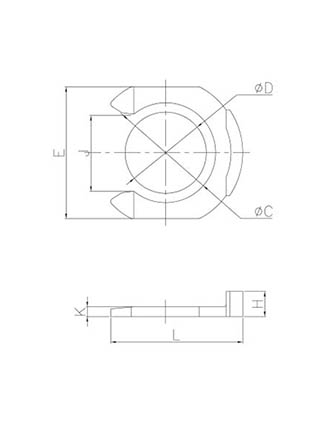

| Code | ØD | ØC | E | L | H | J | K | Weight | Q.TY | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCP04B | 4 | 6,2 | 10,2 | 11,0 | 2,8 | 4,3 | 1,1 | 0,2 | 100 | |||||||||||||||||||||
| HCP06B | 6 | 8,0 | 11,6 | 11,0 | 3,1 | 6,4 | 1,3 | 0,2 | 100 | |||||||||||||||||||||
| HCP08B | 8 | 9,6 | 13,5 | 13,9 | 3,3 | 7,3 | 1,4 | 0,2 | 100 | |||||||||||||||||||||
| HCP10B | 10 | 11,8 | 16,0 | 16,4 | 3,4 | 9,2 | 1,4 | 0,3 | 100 | |||||||||||||||||||||
| HCP12B | 12 | 14,4 | 19,0 | 19,0 | 3,6 | 11,1 | 1,4 | 0,5 | 100 |
