Male connector BSPT thread
Temperature Operating: from 1 ºC to 98 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: POM ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA ·
Types Oring: EPDM suitable for food contact ·
Compatible Fluids: air · beverages · compressed air · gas · potable water · water ·
References HPC

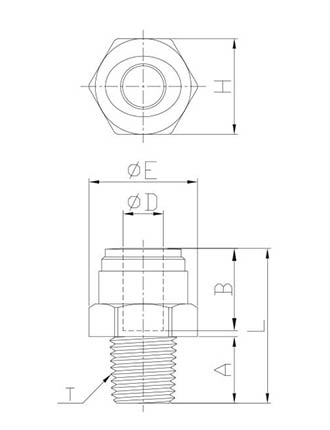

| Code | ØD | T | A | B | ØE | L | H (hex) | Weight | Q.TY | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPC06R01W | 6 | R1/8" | 9,1 | 16,1 | 18,5 | 26,2 | 17 | 3,9 | 100 | |||||||||||||||||||||
| HPC06R02W | 6 | R1/4" | 13,1 | 16,1 | 18,5 | 26,7 | 17 | 4,2 | 100 | |||||||||||||||||||||
| HPC08R01W | 8 | R1/8" | 9,1 | 17,5 | 21,0 | 28,1 | 19 | 5,2 | 100 | |||||||||||||||||||||
| HPC08R02W | 8 | R1/4" | 13,1 | 17,5 | 21,0 | 30,6 | 19 | 5,8 | 50 | |||||||||||||||||||||
| HPC10R03W | 10 | R3/8" | 13,5 | 20,1 | 23,2 | 28,8 | 21 | 6,7 | 50 | |||||||||||||||||||||
| HPC10R04W | 10 | R1/2" | 16,3 | 20,1 | 24,4 | 32,1 | 22 | 9,6 | 50 | |||||||||||||||||||||
| HPC12R03W | 12 | R3/8" | 13,5 | 24,7 | 26,5 | 32,2 | 24 | 8,9 | 50 | |||||||||||||||||||||
| HPC12R04W | 12 | R1/2" | 16,3 | 24,7 | 26,5 | 34,3 | 24 | 11,0 | 50 | |||||||||||||||||||||
| HPC04R01W | 4 | R1/8" | 9,1 | 14,7 | 18,5 | 26,0 | 17 | 4,1 | 100 | |||||||||||||||||||||
| HPC06R03W | 6 | R3/8" | 13,5 | 16,1 | 21,0 | 26,6 | 19 | 5,9 | 50 | |||||||||||||||||||||
| HPC08R03W | 8 | R3/8" | 13,5 | 17,5 | 21,0 | 27,0 | 19 | 5,7 | 50 |
