Male elbow BSPT thread
Temperature Operating: from 1 ºC to 98 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: POM ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA ·
Types Oring: EPDM suitable for food contact ·
Compatible Fluids: air · beverages · compressed air · gas · potable water · water ·
References HPL

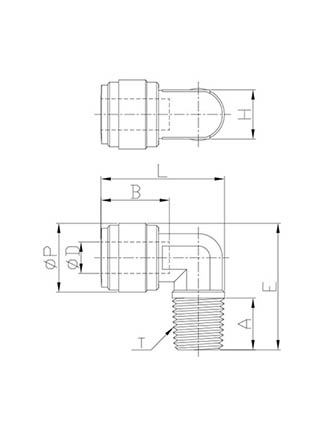

| Code | ØD | T | ØP | A | B | E | L | H (hex) | Weight | Q.TY | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPL06R01W | 6 | R1/8" | 15,0 | 9,1 | 16,1 | 25,6 | 25,4 | 10 | 4,1 | 100 | ||||||||||||||||||||
| HPL06R02W | 6 | R1/4" | 15,0 | 13,1 | 16,1 | 30,6 | 27,0 | 10 | 5,1 | 50 | ||||||||||||||||||||
| HPL08R02W | 8 | R1/4" | 17,6 | 13,1 | 17,5 | 32,2 | 31,5 | 13 | 7,0 | 50 | ||||||||||||||||||||
| HPL10R03W | 10 | R3/8" | 20,0 | 13,5 | 20,1 | 35,7 | 33,9 | 14 | 9,2 | 50 | ||||||||||||||||||||
| HPL12R04W | 12 | R1/2" | 23,0 | 16,3 | 24,7 | 41,4 | 40,7 | 17,7 | 15,6 | 25 | ||||||||||||||||||||
| HPL04R01W | 4 | R1/8" | 15,0 | 9,1 | 14,7 | 25,6 | 25,2 | 10 | 4,2 | 100 | ||||||||||||||||||||
| HPL06R03W | 6 | R3/8" | 17,6 | 13,5 | 16,1 | 32,6 | 33,1 | 13 | 8,4 | 50 | ||||||||||||||||||||
| HPL08R03W | 8 | R3/8" | 17,6 | 13,5 | 17,5 | 32,6 | 33,5 | 13 | 8,0 | 50 | ||||||||||||||||||||
| HPL10R02W | 10 | R1/4" | 23,6 | 13,1 | 20,1 | 38,3 | 37,5 | 17 | 14,1 | 25 | ||||||||||||||||||||
| HPL12R02W | 12 | R1/4" | 23,6 | 13,1 | 24,7 | 38,3 | 38,2 | 17 | 13,1 | 25 | ||||||||||||||||||||
| HPL12R03W | 12 | R3/8" | 23,0 | 13,5 | 24,7 | 38,3 | 38,4 | 17,0 | 13,2 | 25 |
