Male plug
Temperature Operating: from 1 ºC to 98 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: POM ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA ·
Types Oring: EPDM suitable for food contact ·
Compatible Fluids: air · compressed air · gas · potable water · water ·
References HPP

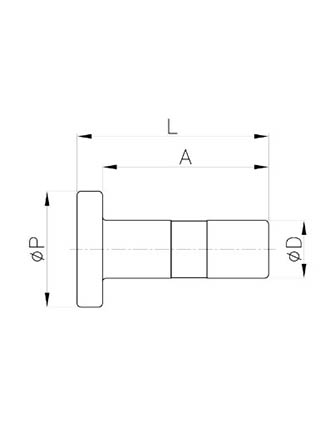

| Code | ØD | ØP | L | A | Weight | Q.TY | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPP04W | 4 | 13 | 22,5 | 19,0 | 0,8 | 200 | ||||||||||||||||||||||||
| HPP06W | 6 | 13 | 24,5 | 21,0 | 1,1 | 200 | ||||||||||||||||||||||||
| HPP08W | 8 | 16 | 26,5 | 23,0 | 1,8 | 100 | ||||||||||||||||||||||||
| HPP10W | 10 | 18 | 30,0 | 26,0 | 2,7 | 100 | ||||||||||||||||||||||||
| HPP12W | 12 | 21 | 34,0 | 30,0 | 4,0 | 100 | ||||||||||||||||||||||||
| HPP15W | 15 | 25 | 40,0 | 36,0 | 6,4 | 50 | ||||||||||||||||||||||||
| HPP22W | 22 | 33 | 45,5 | 41,0 | 12,2 | 20 |
