Union Y
Temperature Operating: from 1 ºC to 98 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: POM ·
Usable tubes: calibrated FEP tube · calibrated PTFE tube · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA ·
Types Oring: EPDM suitable for food contact ·
Compatible Fluids: air · beverages · compressed air · food fluids suitable with construction materials · gas · potable water · water ·
References HUY

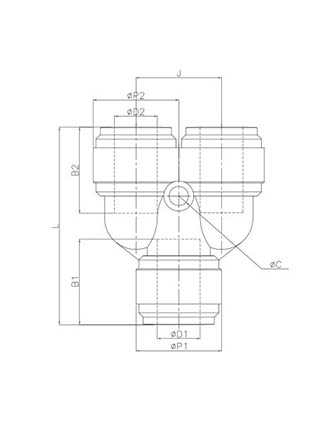

| Code | ØD1 | ØD2 | B1 | B2 | ØP1 | ØP2 | ØC | J | L | Weight | Q.TY | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HUY0404W | 4 | 4 | 14,7 | 14,7 | 13,8 | 13,8 | 3,3 | 13,5 | 33,7 | 6,7 | 100 | |||||||||||||||||||
| HUY0606W | 6 | 6 | 16,1 | 16,1 | 15,5 | 15,5 | 3,3 | 15,5 | 38,8 | 9,2 | 50 | |||||||||||||||||||
| HUY0808W | 8 | 8 | 17,5 | 17,5 | 17,6 | 17,6 | 4,5 | 17,6 | 41,0 | 11,6 | 50 | |||||||||||||||||||
| HUY1010W | 10 | 10 | 20,1 | 20,1 | 20,0 | 20,0 | 4,5 | 20,0 | 46,2 | 16,0 | 25 | |||||||||||||||||||
| HUY1212W | 12 | 12 | 24,7 | 24,7 | 23,0 | 23,0 | 4,5 | 23,0 | 56,4 | 26,3 | 20 | |||||||||||||||||||
| HUY1008W | 10 | 8 | 20,1 | 17,5 | 20,0 | 20,0 | 4,5 | 20,0 | 45,9 | 16,8 | 25 |
