Female MINI quick coupler
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 35 Bar
Technical data sheet: Download PDF
Construction Materials:
Usable tubes:
Types Oring:
Compatible Fluids:
References MINIDO-H

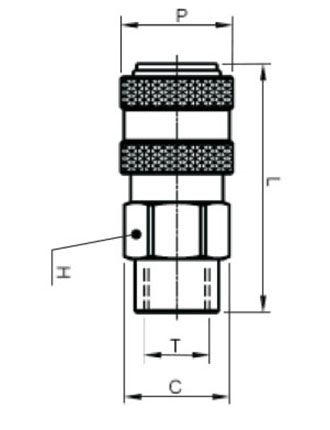

| Code | T | D | L | C | H | Q.TY | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MINIDO-H-316V | G1/4" | 16,5 | 39,2 | 19,0 | 19 | 1 | ||||||||||||||||||||||||
| MINIDO-H-L | G1/4" | 16,5 | 39,2 | 19,0 | 19 | 1 | ||||||||||||||||||||||||
| MINIDO-H1-316V | G1/8" | 16,5 | 37,2 | 15,7 | 14 | 1 | ||||||||||||||||||||||||
| MINIDO-H1-L | G1/8" | 16,5 | 37,2 | 15,7 | 14 | 1 |
