Male connector internal hexagonal NPT thread nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRC-N

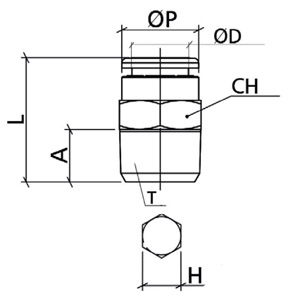

| Code | ØD | T | ØP | I | L | CH | H | Weight | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRC532N01 | 5/32" | N1/8" | 0,393 | 0,334 | 0,748 | 7/16" | 1/8" | 9,0 | ||||||||||||||||||||||
| OTRC532N02 | 5/32" | N1/4" | 0,393 | 0,413 | 0,787 | 9/16" | 1/8" | 16,0 | ||||||||||||||||||||||
| OTRC1-4N01 | 1/4" | N1/8" | 0,511 | 0,334 | 0,885 | 1/2" | 3/16" | 11,0 | ||||||||||||||||||||||
| OTRC1-4N02 | 1/4" | N1/4" | 0,511 | 0,413 | 0,885 | 9/16" | 3/16" | 15,0 | ||||||||||||||||||||||
| OTRC516N01 | 5/16" | N1/8" | 0,551 | 0,334 | 1,062 | 9/16" | 3/16" | 15,5 | ||||||||||||||||||||||
| OTRC516N02 | 5/16" | N1/4" | 0,551 | 0,413 | 1,003 | 9/16" | 1/4" | 16,0 | ||||||||||||||||||||||
| OTRC516N03 | 5/16" | N3/8" | 0,551 | 0,452 | 0,925 | 11/16" | 1/4" | 25,0 | ||||||||||||||||||||||
| OTRC38N01 | 3/8" | N1/8" | 0,629 | 0,334 | 1,122 | 11/16" | 3/16" | 21,5 | ||||||||||||||||||||||
| OTRC38N02 | 3/8" | N1/4" | 0,629 | 0,413 | 1,181 | 11/16" | 1/4" | 25,0 | ||||||||||||||||||||||
| OTRC38N03 | 3/8" | N3/8" | 0,629 | 0,452 | 1,003 | 11/16" | 5/16" | 24,0 | ||||||||||||||||||||||
| OTRC38N04 | 3/8" | N1/2" | 0,629 | 0,570 | 1,043 | 7/8" | 5/16" | 46,0 | ||||||||||||||||||||||
| OTRC1-2N02 | 1/2" | N1/4" | 0,748 | 0,413 | 1,318 | 7/8" | 1/4" | 37,0 | ||||||||||||||||||||||
| OTRC1-2N03 | 1/2" | N3/8" | 0,748 | 0,452 | 1,338 | 7/8" | 3/8" | 39,0 | ||||||||||||||||||||||
| OTRC1-2N04 | 1/2" | N1/2" | 0,748 | 0,570 | 1,181 | 7/8" | 3/8" | 43,0 |
