Swivel male elbow BSPP & metric nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRL-G

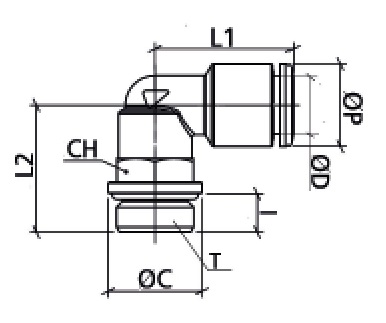

| Code | ØD | T | ØP | ØC | I | L1 | L2 | CH | Weight | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRL04M5 | 4 | M5x0,8 | 10 | 7 | 4 | 18 | 15 | 8 | 5,0 | |||||||||||||||||||||
| OTRL04G01 | 4 | G1/8" | 10 | 13 | 5,5 | 19,5 | 19 | 13 | 19,0 | |||||||||||||||||||||
| OTRL04G02 | 4 | G1/4" | 10 | 16 | 6,5 | 19,5 | 21,5 | 13 | 22,0 | |||||||||||||||||||||
| OTRL06M5 | 6 | M5x0,8 | 12 | 7 | 4 | 19,5 | 16 | 8 | 11,0 | |||||||||||||||||||||
| OTRL06G01 | 6 | G1/8" | 12 | 13 | 5,5 | 21 | 19 | 13 | 20,0 | |||||||||||||||||||||
| OTRL06G02 | 6 | G1/4" | 12 | 16 | 6,5 | 21 | 21,5 | 13 | 24,0 | |||||||||||||||||||||
| OTRL08G01 | 8 | G1/8" | 14 | 13 | 5,5 | 23 | 19 | 13 | 22,0 | |||||||||||||||||||||
| OTRL08G02 | 8 | G1/4" | 14 | 16 | 6,5 | 23 | 21,5 | 13 | 24,0 | |||||||||||||||||||||
| OTRL08G03 | 8 | G3/8" | 14 | 20 | 7,5 | 23 | 23 | 13 | 28,0 | |||||||||||||||||||||
| OTRL10G02 | 10 | G1/4" | 16 | 16 | 6,5 | 26 | 23 | 16 | 35,0 | |||||||||||||||||||||
| OTRL10G03 | 10 | G3/8" | 16 | 20 | 7,5 | 26 | 26 | 16 | 43,5 | |||||||||||||||||||||
| OTRL10G04 | 10 | G1/2" | 16 | 25 | 9,0 | 26 | 27,5 | 16 | 52,0 | |||||||||||||||||||||
| OTRL12G02 | 12 | G1/4" | 19 | 16 | 6,5 | 31 | 25,5 | 20 | 55,0 | |||||||||||||||||||||
| OTRL12G03 | 12 | G3/8" | 19 | 20 | 7,5 | 31 | 26,5 | 20 | 55,0 | |||||||||||||||||||||
| OTRL12G04 | 12 | G1/2" | 19 | 25 | 9,0 | 31 | 29 | 20 | 63,0 |
