Swivel male elbow NPT & UNF thread nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRL-N

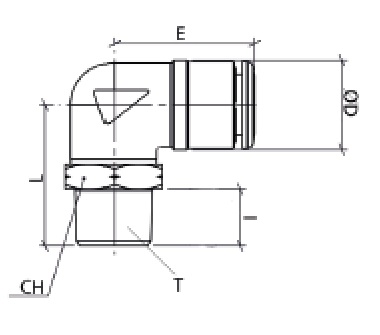

| Code | ØD | T | ØP | I | L1 | L2 | CH | Weight | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRL1-2N02 | 1/2" | N1/4" | 0,768 | 0,413 | 1,220 | 1,122 | 7/8" | 58,0 | ||||||||||||||||||||||
| OTRL1-2N03 | 1/2" | N3/8" | 0,768 | 0,452 | 1,220 | 1,161 | 7/8" | 61,0 | ||||||||||||||||||||||
| OTRL1-2N04 | 1/2" | N1/2" | 0,768 | 0,570 | 1,220 | 1,280 | 7/8" | 67,0 | ||||||||||||||||||||||
| OTRL1-4N01 | 1/4" | N1/8" | 0,512 | 0,334 | 0,846 | 0,827 | 9/16" | 23,0 | ||||||||||||||||||||||
| OTRL1-4N02 | 1/4" | N1/4" | 0,512 | 0,413 | 0,846 | 0,925 | 9/16" | 26,0 | ||||||||||||||||||||||
| OTRL38N01 | 3/8" | N1/8" | 0,650 | 0,334 | 1,004 | 0,945 | 11/16" | 40,0 | ||||||||||||||||||||||
| OTRL38N02 | 3/8" | N1/4" | 0,650 | 0,413 | 1,004 | 1,024 | 11/16" | 43,0 | ||||||||||||||||||||||
| OTRL38N03 | 3/8" | N3/8" | 0,650 | 0,452 | 1,024 | 1,083 | 11/16" | 47,0 | ||||||||||||||||||||||
| OTRL38N04 | 3/8" | N1/2" | 0,650 | 0,570 | 1,004 | 1,201 | 7/8" | 60,0 | ||||||||||||||||||||||
| OTRL516N01 | 5/16" | N1/8" | 0,551 | 0,334 | 0,906 | 0,827 | 9/16" | 23,0 | ||||||||||||||||||||||
| OTRL516N02 | 5/16" | N1/4" | 0,551 | 0,413 | 0,906 | 0,925 | 9/16" | 24,0 | ||||||||||||||||||||||
| OTRL516N03 | 5/16" | N3/8" | 0,551 | 0,452 | 0,906 | 0,984 | 11/16" | 34,0 | ||||||||||||||||||||||
| OTRL532N01 | 5/32" | N1/8" | 0,394 | 0,334 | 0,768 | 0,827 | 9/16" | 20,5 | ||||||||||||||||||||||
| OTRL532N02 | 5/32" | N1/4" | 0,394 | 0,413 | 0,768 | 0,925 | 9/16" | 24,0 | ||||||||||||||||||||||
| OTRL532UF1032 | 5/32" | UNF 10/32 | 0,394 | 0,157 | 0,709 | 0,591 | 3/8" | 11,0 |
