Swivel male elbow BSPT thread nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRL-R

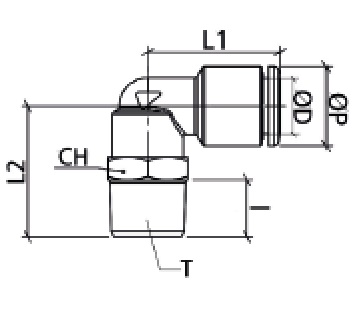

| Code | ØD | T | ØP | I | L1 | L2 | CH | Weight | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRL04R01 | 4 | R1/8" | 10 | 8 | 19,5 | 20,5 | 13 | 20,0 | ||||||||||||||||||||||
| OTRL04R02 | 4 | R1/4" | 10 | 10 | 19,5 | 23 | 14 | 23,0 | ||||||||||||||||||||||
| OTRL06R01 | 6 | R1/8" | 12 | 8 | 21 | 20,5 | 13 | 20,0 | ||||||||||||||||||||||
| OTRL06R02 | 6 | R1/4" | 12 | 10 | 21 | 23 | 14 | 24,0 | ||||||||||||||||||||||
| OTRL08R01 | 8 | R1/8" | 14 | 8 | 23 | 20,5 | 13 | 22,0 | ||||||||||||||||||||||
| OTRL08R02 | 8 | R1/4" | 14 | 10 | 23 | 23 | 14 | 26,0 | ||||||||||||||||||||||
| OTRL08R03 | 8 | R3/8" | 14 | 11 | 23 | 24,5 | 17 | 32,0 | ||||||||||||||||||||||
| OTRL10R02 | 10 | R1/4" | 16 | 10 | 26 | 25,5 | 16 | 41,0 | ||||||||||||||||||||||
| OTRL10R03 | 10 | R3/8" | 16 | 11 | 26 | 27 | 17 | 45,0 | ||||||||||||||||||||||
| OTRL10R04 | 10 | R1/2" | 16 | 14 | 26 | 30 | 22 | 59,0 | ||||||||||||||||||||||
| OTRL12R02 | 12 | R1/4" | 19 | 10 | 31 | 28 | 20 | 56,0 | ||||||||||||||||||||||
| OTRL12R03 | 12 | R3/8" | 19 | 11 | 31 | 28,5 | 20 | 59,0 | ||||||||||||||||||||||
| OTRL12R04 | 12 | R1/2" | 19 | 14 | 31 | 31,5 | 22 | 70,0 |
