Bulkhead connector nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRMM

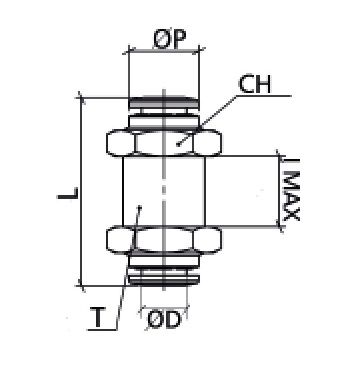

| Code | ØD | T | ØP | L | I-max | CH | Weight | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRMM04-532 | 4 | M12x1 | 10 | 34 | 15 | 16 | 23,0 | |||||||||||||||||||||||
| OTRMM0600 | 6 | M14x1 | 12 | 32 | 12 | 17 | 31,0 | |||||||||||||||||||||||
| OTRMM08-516 | 8 | M16x1 | 14 | 36,5 | 16 | 19 | 36,0 | |||||||||||||||||||||||
| OTRMM1000 | 10 | M20x1 | 16 | 43 | 19 | 24 | 70,0 | |||||||||||||||||||||||
| OTRMM1200 | 12 | M22x1,5 | 19 | 44 | 20 | 25 | 76,0 |
