Swivel male tee NPT & UNF thread nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRT-N

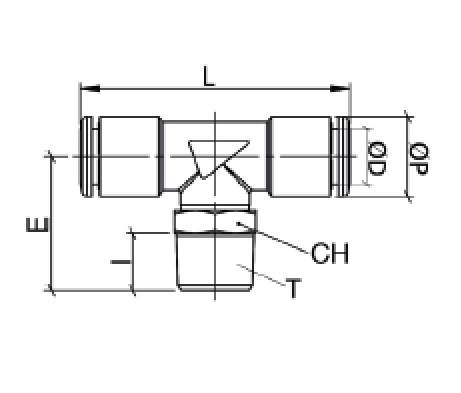

| Code | ØD | T | ØP | I | E | L | CH | Weight | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRT1-2N02 | 1/2" | N1/4" | 0,767 | 0,413 | 1,122 | 2,440 | 7/8" | 75,0 | ||||||||||||||||||||||
| OTRT1-2N03 | 1/2" | N3/8" | 0,767 | 0,452 | 1,161 | 2,440 | 7/8" | 78,0 | ||||||||||||||||||||||
| OTRT1-4N01 | 1/4" | N1/8" | 0,551 | 0,334 | 0,846 | 1,673 | 9/16" | 33,0 | ||||||||||||||||||||||
| OTRT1-4N02 | 1/4" | N1/4" | 0,551 | 0,413 | 0,944 | 1,673 | 9/16" | 36,0 | ||||||||||||||||||||||
| OTRT38N02 | 3/8" | N1/4" | 0,649 | 0,413 | 1,023 | 2,027 | 11/16" | 58,0 | ||||||||||||||||||||||
| OTRT38N03 | 3/8" | N3/8" | 0,649 | 0,452 | 1,082 | 2,027 | 11/16" | 61,0 | ||||||||||||||||||||||
| OTRT516N01 | 5/16" | N1/8" | 0,551 | 0,334 | 0,846 | 1,830 | 9/16" | 34,0 | ||||||||||||||||||||||
| OTRT516N02 | 5/16" | N1/4" | 0,551 | 0,413 | 0,944 | 1,830 | 9/16" | 37,0 | ||||||||||||||||||||||
| OTRT532N01 | 5/32" | N1/8" | 0,393 | 0,334 | 0,846 | 1,535 | 9/16" | 28,0 | ||||||||||||||||||||||
| OTRT532N02 | 5/32" | N1/4" | 0,393 | 0,413 | 0,944 | 1,535 | 9/16" | 31,0 | ||||||||||||||||||||||
| OTRT532UF1032 | 5/32" | UNF 10-32 | 0,393 | 0,157 | 0,669 | 1,259 | 3/8" | 17,0 |
