Swivel male tee BSPT thread nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRT-R

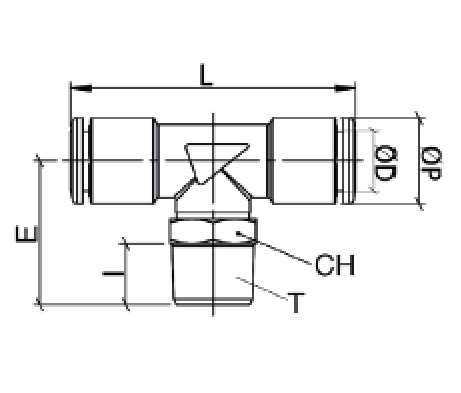

| Code | ØD | T | ØP | I | E | L | CH | Weight | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRT04R01 | 4 | R1/8" | 10 | 8 | 21 | 39 | 13 | 27,0 | ||||||||||||||||||||||
| OTRT04R02 | 4 | R1/4" | 10 | 10 | 23,5 | 39 | 14 | 31,0 | ||||||||||||||||||||||
| OTRT06R01 | 6 | R1/8" | 12 | 8 | 21 | 42 | 13 | 30,0 | ||||||||||||||||||||||
| OTRT06R02 | 6 | R1/4" | 12 | 10 | 23,5 | 42 | 14 | 34,0 | ||||||||||||||||||||||
| OTRT08R01 | 8 | R1/8" | 14 | 8 | 21 | 46,5 | 13 | 34,0 | ||||||||||||||||||||||
| OTRT08R02 | 8 | R1/4" | 14 | 10 | 23,5 | 46,5 | 14 | 37,0 | ||||||||||||||||||||||
| OTRT08R03 | 8 | R3/8" | 14 | 11 | 25 | 46,5 | 17 | 44,0 | ||||||||||||||||||||||
| OTRT10R02 | 10 | R1/4" | 16 | 10 | 25,5 | 52 | 16 | 55,0 | ||||||||||||||||||||||
| OTRT10R03 | 10 | R3/8" | 16 | 11 | 27 | 52 | 17 | 58,5 | ||||||||||||||||||||||
| OTRT10R04 | 10 | R1/2" | 16 | 14 | 30 | 52 | 22 | 73,0 | ||||||||||||||||||||||
| OTRT12R02 | 12 | R1/4" | 19 | 10 | 28 | 62 | 20 | 77,0 | ||||||||||||||||||||||
| OTRT12R03 | 12 | R3/8" | 19 | 11 | 28,5 | 62 | 20 | 80,0 | ||||||||||||||||||||||
| OTRT12R04 | 12 | R1/2" | 19 | 14 | 31,5 | 62 | 22 | 81,0 |
