Union connector metric tube nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRUC

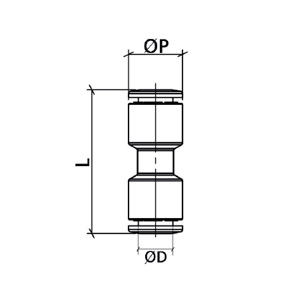

| Code | ØD | ØP | L | Weight | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRUC04-532 | 5/32" | 0,393 | 1,141 | 9,0 | ||||||||||||||||||||||||||
| OTRUC0600 | 6 | 12 | 32,0 | 12,0 | ||||||||||||||||||||||||||
| OTRUC08-516 | 5/16" | 0,551 | 1,397 | 16,0 | ||||||||||||||||||||||||||
| OTRUC1000 | 10 | 16 | 39,5 | 21,0 | ||||||||||||||||||||||||||
| OTRUC1200 | 12 | 19 | 44,0 | 37,0 |
