Union connector inch tube nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air ·
References OTRUC-N

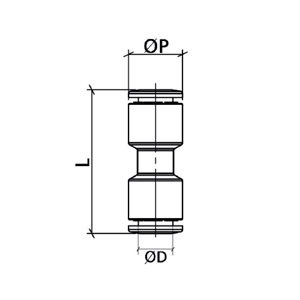

| Code | ØD | ØP | L | Weight | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRUC04-532 | 5/32" | 0,393 | 1,141 | 9,0 | ||||||||||||||||||||||||||
| OTRUC08-516 | 5/16" | 0,551 | 1,397 | 16,0 | ||||||||||||||||||||||||||
| OTRUC1-2 | 1/2" | 0,748 | 1,732 | 37,0 | ||||||||||||||||||||||||||
| OTRUC1-4 | 1/4" | 0,511 | 1,299 | 14,0 | ||||||||||||||||||||||||||
| OTRUC38 | 3/8" | 0,629 | 1,515 | 21,0 |
