Union elbow metric tube nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRUL

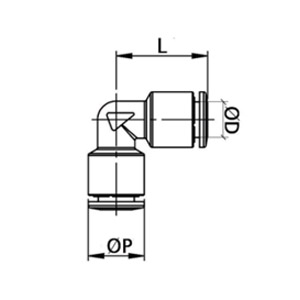

| Code | ØD | ØP | L | Weight | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRUL04-532 | 5/32" | 0,393 | 0,708 | 12,0 | ||||||||||||||||||||||||||
| OTRUL0600 | ||||||||||||||||||||||||||||||
| OTRUL08-516 | 5/16" | 0,551 | 0,885 | 20,0 | ||||||||||||||||||||||||||
| OTRUL1000 | ||||||||||||||||||||||||||||||
| OTRUL1200 |
