Union tee metric tube nickel plated
Temperature Operating: from -20 ºC to 80 ºC
Working Pressure: 16 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: polyammide tube · polyethylene tube ·
Types Oring: NBR silicon free ·
Compatible Fluids: air · compressed air · vacuum ·
References OTRUT

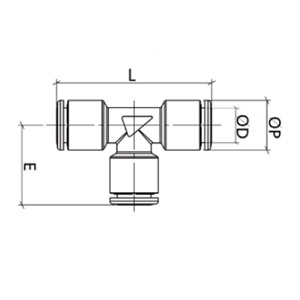

| Code | ØD | ØP | E | L | Weight | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OTRUT04-532 | 5/32" | 0,393 | 0,708 | 1,417 | 16,9 | |||||||||||||||||||||||||
| OTRUT0600 | 6 | 12 | 19,5 | 39 | 20,0 | |||||||||||||||||||||||||
| OTRUT08-516 | 5/16" | 0,551 | 0,885 | 1,771 | 29,7 | |||||||||||||||||||||||||
| OTRUT1000 | 10 | 16 | 25,5 | 51 | 37,0 | |||||||||||||||||||||||||
| OTRUT1200 | 12 | 19 | 29,0 | 58 | 68,0 |
