Antisparkling polyurethane tube flamex hybrid for heavy duty
Temperature Operating: from 0 ºC to 0 ºC
Working Pressure: 0 Bar
Technical data sheet: Download PDF
Construction Materials:
Usable tubes:
Types Oring:
Compatible Fluids:
References PUFH

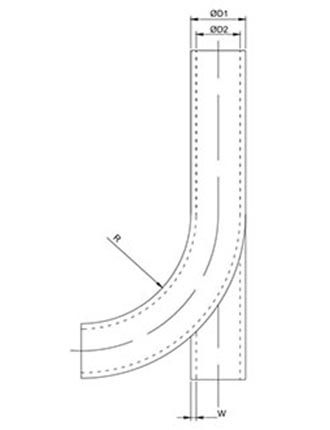

| Code | D1 | D2 | DN | W (mm) | Bending Radius | Working Pressure | Burst Pressure | Color | Weight | Q.TY for Roll | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PUFH0402 | 4 | 2 | 2 | 1,0 | 7 | 20 | 60 | Nero | 12,0 | 50mt. | ||||||||||||||||||||
| PUFH0804 | 8 | 4 | 4 | 2,0 | 15 | 22 | 65 | Nero | 48,0 | 50mt. | ||||||||||||||||||||
| PUFH1006 | 10 | 6 | 6 | 2,0 | 20 | 17 | 51 | Nero | 64,0 | 50mt. | ||||||||||||||||||||
| PUFH1208 | 12 | 8 | 8 | 2,0 | 28 | 15 | 44 | Nero | 80,0 | 50mt. | ||||||||||||||||||||
| PUFH1410 | 14 | 10 | 10 | 2,0 | 45 | 13 | 38 | Nero | 96,0 | 50mt. | ||||||||||||||||||||
| PUFH1611 | 16 | 11 | 11 | 2,5 | 55 | 12 | 37 | Nero | 135,0 | 50mt. |
