Bidirectional female flow regulator NPT thread Inox AISI 316
Temperature Operating: from -25 ºC to 120 ºC
Working Pressure: 40 Bar
Technical data sheet: Download PDF
Construction Materials: stainless steel AISI 316 ·
Usable tubes:
Types Oring:
Compatible Fluids: air · fluid suitable with construction materials ·
References XSFC-B-N

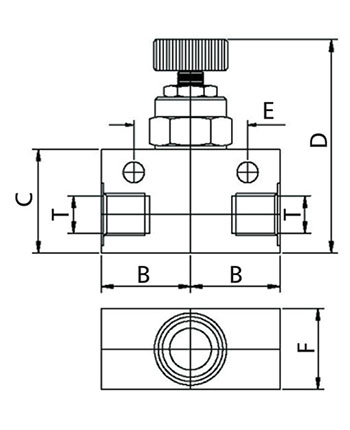

| Code | T | B | C | D | E | F | Weight | Q.TY | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSFC-B-N02 | G1/4 | 27,5 | 32,0 | 56,0 | 31,8 | 25,0 | 350,0 | 1 | ||||||||||||||||||||||
| XSFC-B-N04 | G1/2 | 32,0 | 38,0 | 62,0 | 35,0 | 28,0 | 625,0 | 1 |
