Union elbow stainless steel AISI 316L
Temperature Operating: from -20 ºC to 150 ºC
Working Pressure: 20 Bar
Technical data sheet: Download PDF
Construction Materials: stainless steel AISI 316L ·
Usable tubes: calibrated FEP tube · polyammide tube · polyethylene tube ·
Types Oring: FKM NSF/ANSI 61 certified and FDA compliant ·
Compatible Fluids: air · compressed air · fluid suitable with construction materials · vacuum · water ·
References XVRUL

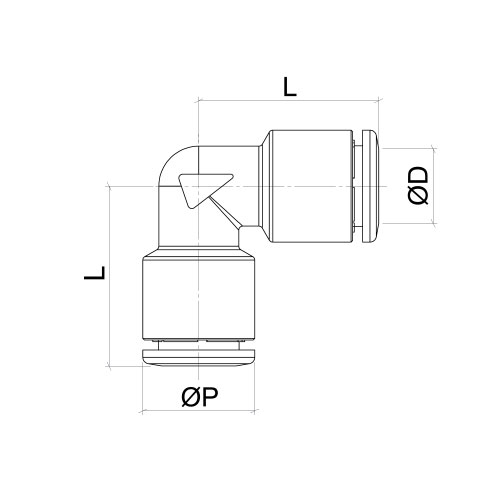

| Code | ØD | ØP | L | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XVRUL04 | 4 | 10 | 16,5 | |||||||||||||||||||||||||||
| XVRUL06 | 6 | 12 | 20,5 | |||||||||||||||||||||||||||
| XVRUL08 | 8 | 14 | 22,5 | |||||||||||||||||||||||||||
| XVRUL10 | 10 | 16 | 25 | |||||||||||||||||||||||||||
| XVRUL12 | 12 | 19 | 29 |
