Male barb connector BSPP & metric thread with OR
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 60 Bar
Technical data sheet: Download PDF
Construction Materials:
Usable tubes: antisparkling polyurethane tube DIN 5510-2 · antisparkling polyurethane tube flamex hybrid · antisparkling polyurethane tube flamex hybrid for heavy duties · antistatic polyurethane tube · calibrated FEP tube · high quality polyurethane tube on polyester basis · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA · polyurethane tube with internal PVCnon-toxic coating · PVC transparent tube · PVC tube with reinforcement in polyester fiber · PVC wired tube ·
Types Oring: NBR ·
Compatible Fluids: compressed air · fluid suitable with construction materials · oil · water ·
References 1167

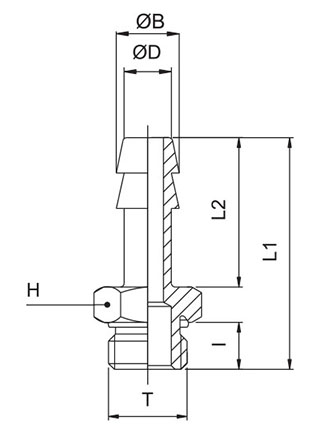

| Code | T | ØD | I | L1 | L2 | H (hex) | ØB - Barb | Weight | Q.TY | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1167TRM545 | M5 | 4,5 | 4,5 | 23,0 | 15,0 | 8 | 5,00 | 6,0 | 100 | |||||||||||||||||||||
| 1167TR186 | G1/8" | 6 | 6,5 | 30,0 | 19,0 | 14 | 6,15 | 10,0 | 100 | |||||||||||||||||||||
| 1167TR146 | G1/4" | 6 | 8,0 | 32,0 | 19,0 | 17 | 6,15 | 16,0 | 100 | |||||||||||||||||||||
| 1167TR187 | G1/8" | 7 | 6,5 | 30,0 | 19,0 | 14 | 7,15 | 10,0 | 100 | |||||||||||||||||||||
| 1167TR147 | G1/4" | 7 | 8,0 | 32,0 | 19,0 | 17 | 7,15 | 16,0 | 100 | |||||||||||||||||||||
| 1167TR188 | G1/8" | 8 | 6,5 | 30,0 | 19,0 | 14 | 8,15 | 12,0 | 100 | |||||||||||||||||||||
| 1167TR148 | G1/4" | 8 | 8,0 | 32,0 | 19,0 | 17 | 8,15 | 17,0 | 100 | |||||||||||||||||||||
| 1167TR189 | G1/8" | 9 | 6,5 | 30,0 | 19,0 | 14 | 9,20 | 14,0 | 100 | |||||||||||||||||||||
| 1167TR149 | G1/4" | 9 | 8,0 | 32,0 | 19,0 | 17 | 9,20 | 16,0 | 100 | |||||||||||||||||||||
| 1167TR389 | G3/8" | 9 | 9,0 | 33,0 | 19,0 | 20 | 9,20 | 22,0 | 50 | |||||||||||||||||||||
| 1167TR1412 | G1/4" | 12 | 8,0 | 33,0 | 20,0 | 17 | 12,20 | 18,0 | 100 | |||||||||||||||||||||
| 1167TR3812 | G3/8" | 12 | 9,0 | 34,0 | 20,0 | 20 | 12,20 | 24,0 | 50 | |||||||||||||||||||||
| 1167TR1212 | G1/2" | 12 | 10,0 | 35,5 | 20,0 | 24 | 12,20 | 35,0 | 25 | |||||||||||||||||||||
| 1167TR3817 | G3/8" | 17 | 9,0 | 38,0 | 24,0 | 20 | 17,30 | 30,0 | 25 | |||||||||||||||||||||
| 1167TR1217 | G1/2" | 17 | 10,0 | 39,5 | 24,0 | 24 | 17,30 | 42,0 | 25 |
