Male barb connector BSPT thread
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 60 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: antisparkling polyurethane tube DIN 5510-2 · antisparkling polyurethane tube flamex hybrid · antisparkling polyurethane tube flamex hybrid for heavy duties · antistatic polyurethane tube · calibrated FEP tube · high quality polyurethane tube on polyester basis · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA · polyurethane tube with internal PVCnon-toxic coating · PVC transparent tube · PVC tube with reinforcement in polyester fiber · PVC wired tube ·
Types Oring: NBR ·
Compatible Fluids: compressed air · fluid suitable with construction materials · oil · water ·
References 1169

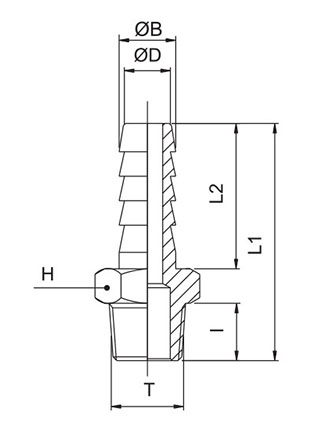

| Code | T | ØD | I | L1 | L2 | H (hex) | ØB - Barb | Weight | Q.TY | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1169TR186 | R1/8" | 6 | 8,0 | 31,5 | 19,0 | 12 | 6,20 | 8,0 | 100 | |||||||||||||||||||||
| 1169TR146 | R1/4" | 6 | 11,0 | 35,0 | 19,0 | 14 | 6,20 | 14,0 | 100 | |||||||||||||||||||||
| 1169TR187 | R1/8" | 7 | 8,0 | 31,5 | 19,0 | 12 | 7,20 | 10,0 | 100 | |||||||||||||||||||||
| 1169TR147 | R1/4" | 7 | 11,0 | 35,0 | 19,0 | 14 | 7,20 | 14,0 | 100 | |||||||||||||||||||||
| 1169TR188 | R1/8" | 8 | 8,0 | 31,5 | 19,0 | 12 | 8,20 | 10,0 | 100 | |||||||||||||||||||||
| 1169TR148 | R1/4" | 8 | 11,0 | 35,0 | 19,0 | 14 | 8,20 | 14,0 | 100 | |||||||||||||||||||||
| 1169TR189 | R1/8" | 9 | 8,0 | 31,5 | 19,0 | 12 | 9,20 | 12,0 | 100 | |||||||||||||||||||||
| 1169TR149 | R1/4" | 9 | 11,0 | 35,0 | 19,0 | 14 | 9,20 | 16,0 | 100 | |||||||||||||||||||||
| 1169TR389 | R3/8" | 9 | 11,5 | 35,5 | 19,0 | 17 | 9,20 | 20,0 | 50 | |||||||||||||||||||||
| 1169TR129 | R1/2" | 9 | 14,0 | 38,5 | 19,0 | 22 | 9,20 | 32,0 | 25 | |||||||||||||||||||||
| 1169TR1810 | R1/8" | 10 | 8,0 | 32,5 | 20,0 | 12 | 10,20 | 10,0 | 100 | |||||||||||||||||||||
| 1169TR1410 | R1/4" | 10 | 11,0 | 36,0 | 20,0 | 14 | 10,20 | 16,0 | 100 | |||||||||||||||||||||
| 1169TR3810 | R3/8" | 10 | 11,5 | 36,5 | 20,0 | 17 | 10,20 | 22,0 | 50 | |||||||||||||||||||||
| 1169TR1210 | R1/2" | 10 | 14,0 | 39,5 | 20,0 | 22 | 10,20 | 32,0 | 25 | |||||||||||||||||||||
| 1169TR1412 | R1/4" | 12 | 11,0 | 36,0 | 20,0 | 14 | 12,20 | 16,0 | 100 | |||||||||||||||||||||
| 1169TR3812 | R3/8" | 12 | 11,5 | 36,5 | 20,0 | 17 | 12,20 | 22,0 | 100 | |||||||||||||||||||||
| 1169TR1212 | R1/2" | 12 | 14,0 | 39,5 | 20,0 | 22 | 12,20 | 34,0 | 25 | |||||||||||||||||||||
| 1169TR3814 | R3/8" | 14 | 11,5 | 38,5 | 22,0 | 17 | 14,30 | 24,0 | 50 | |||||||||||||||||||||
| 1169TR1214 | R1/2" | 14 | 14,0 | 41,5 | 22,0 | 22 | 14,30 | 36,0 | 25 | |||||||||||||||||||||
| 1169TR3816 | R3/8" | 16 | 11,5 | 38,5 | 22,0 | 17 | 16,30 | 26,0 | 50 | |||||||||||||||||||||
| 1169TR1216 | R1/2" | 16 | 14,0 | 41,5 | 22,0 | 22 | 16,30 | 36,0 | 25 | |||||||||||||||||||||
| 1169TR3416 | R3/4" | 16 | 16,5 | 45,0 | 22,0 | 27 | 16,30 | 58,0 | 25 | |||||||||||||||||||||
| 1169TR3817 | R3/8" | 17 | 11,5 | 40,5 | 24,0 | 18 | 17,30 | 30,0 | 25 | |||||||||||||||||||||
| 1169TR1217 | R1/2" | 17 | 14,0 | 43,5 | 24,0 | 22 | 17,30 | 40,0 | 25 | |||||||||||||||||||||
| 1169TR3818 | R3/8" | 18 | 11,5 | 40,5 | 24,0 | 19 | 18,30 | 34,0 | 25 | |||||||||||||||||||||
| 1169TR1218 | R1/2" | 18 | 14,0 | 43,5 | 24,0 | 22 | 18,30 | 44,0 | 25 | |||||||||||||||||||||
| 1169TR3418 | R3/4" | 18 | 16,5 | 47,0 | 24,0 | 27 | 18,30 | 62,0 | 25 | |||||||||||||||||||||
| 1169TR3820 | R3/8" | 20 | 11,5 | 41,0 | 24,0 | 22 | 20,45 | 40,0 | 25 | |||||||||||||||||||||
| 1169TR1220 | R1/2" | 20 | 14,0 | 43,5 | 24,0 | 22 | 20,45 | 42,0 | 25 | |||||||||||||||||||||
| 1169TR3420 | R3/4" | 20 | 16,5 | 46,5 | 24,0 | 27 | 20,45 | 60,0 | 25 | |||||||||||||||||||||
| 1169TR3425 | R3/4" | 25 | 16,5 | 53,0 | 30,0 | 27 | 25,50 | 76,0 | 25 | |||||||||||||||||||||
| 1169TR125 | R1" | 25 | 19,0 | 56,0 | 30,0 | 34 | 25,50 | 114,0 | 25 |
