Long male elbow 120º barb connector BSPT thread
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 60 Bar
Technical data sheet: Download PDF
Construction Materials: Nickel plated brass UNI EN 12164 CW 614N & UNI EN 12165 CW 617N ·
Usable tubes: antisparkling polyurethane tube DIN 5510-2 · antisparkling polyurethane tube flamex hybrid · antisparkling polyurethane tube flamex hybrid for heavy duties · antistatic polyurethane tube · calibrated FEP tube · high quality polyurethane tube on polyester basis · polyammide tube PA12 · polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA · polyurethane tube with internal PVCnon-toxic coating · PVC transparent tube · PVC tube with reinforcement in polyester fiber · PVC wired tube ·
Types Oring: NBR ·
Compatible Fluids: compressed air · fluid suitable with construction materials · oil · water ·
References 1173

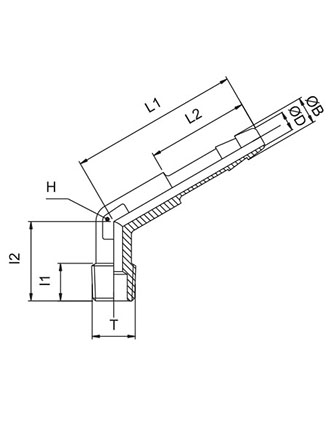

| Code | T | ØD | I1 | I2 | L1 | L2 | H (hex) | ØB - Barb | Weight | Q.TY | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1173TR186 | R1/8" | 6 | 8,0 | 18,5 | 38,0 | 23,0 | 8 | 6,20 | 14,0 | 100 | ||||||||||||||||||||
| 1173TR187 | R1/8" | 7 | 8,0 | 18,5 | 38,0 | 23,0 | 8 | 7,20 | 12,0 | 100 |
