Nipple BSPT thread
Temperature Operating: from -20 ºC to 180 ºC
Working Pressure: 150 Bar
Technical data sheet: Download PDF
Construction Materials: stainless steel AISI 316L ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · food fluids suitable with construction materials · potable water · water ·
References 1410

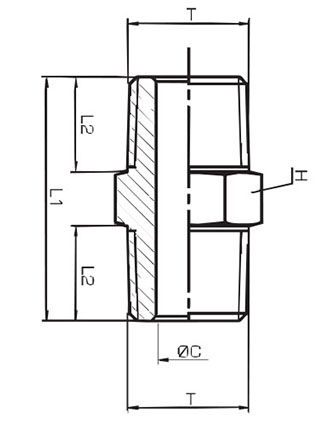

| Code | T | PN (Bar) | ØC | L1 | L2 | H (hex) | Weight | Q.TY | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1410TR18 | R1/8" | 150 | 5 | 24 | 9,0 | 12 | 11,3 | 10 | ||||||||||||||||||||||
| 1410TR14 | R1/4" | 150 | 7 | 27 | 10,5 | 14 | 19,6 | 10 | ||||||||||||||||||||||
| 1410TR38 | R3/8" | 150 | 10 | 30 | 11,5 | 17 | 29,9 | 10 | ||||||||||||||||||||||
| 1410TR12 | R1/2" | 150 | 13 | 38 | 15,0 | 22 | 58,0 | 10 | ||||||||||||||||||||||
| 1410TR34 | R3/4" | 150 | 18 | 46 | 18,0 | 27 | 95,4 | 10 |
