M BSPT thread / F BSPP thread enlarger
Temperature Operating: from -20 ºC to 180 ºC
Working Pressure: 150 Bar
Technical data sheet: Download PDF
Construction Materials: stainless steel AISI 316L ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · food fluids suitable with construction materials · potable water · water ·
References 1420

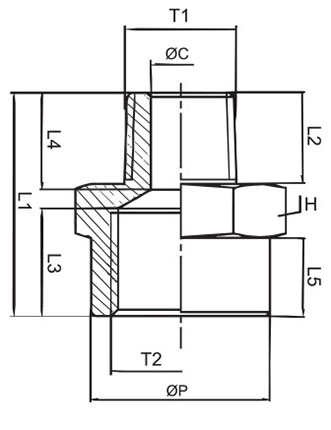

| Code | T1 | T2 | PN (Bar) | ØC | ØP | L1 | L2 | L3 | L4 | L5 | H (hex) | Weight | Q.TY | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1420TR1814 | R1/8" | G1/4" | 150 | 5 | 16,5 | 22 | 8 | 11,0 | 9,1 | 8,0 | 17 | 16,2 | 10 | |||||||||||||||||
| 1420TR1438 | R1/4" | G3/8" | 150 | 7 | 21,5 | 27,0 | 11 | 13,0 | 11,7 | 9,5 | 22 | 33,2 | 10 | |||||||||||||||||
| 1420TR3812 | R3/8" | G1/2" | 150 | 10 | 26,5 | 30,0 | 11 | 15,0 | 12,4 | 11,5 | 27 | 54,6 | 10 |
