M plug BSPT thread with exagon embedded
Temperature Operating: from -20 ºC to 180 ºC
Working Pressure: 150 Bar
Technical data sheet: Download PDF
Construction Materials: stainless steel AISI 316L ·
Usable tubes:
Types Oring:
Compatible Fluids: compressed air · food fluids suitable with construction materials · potable water · water ·
References 1461

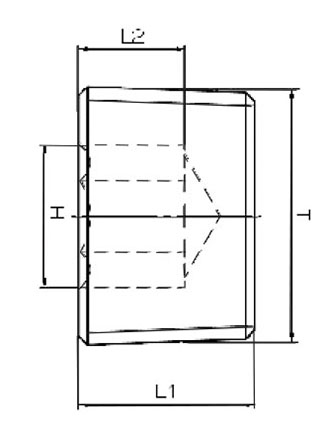

| Code | T1 | PN (Bar) | L1 | L2 | H (hex) | Weight | Q.TY | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1461TR18 | R1/8" | 150 | 8,2 | 5,0 | 5 | 3,0 | 10 | |||||||||||||||||||||||
| 1461TR14 | R1/4" | 150 | 10,2 | 6,0 | 6 | 7,4 | 10 | |||||||||||||||||||||||
| 1461TR38 | R3/8" | 150 | 11,6 | 7,0 | 8 | 14,0 | 10 | |||||||||||||||||||||||
| 1461TR12 | R1/2" | 150 | 13,3 | 8,0 | 10 | 24,5 | 10 | |||||||||||||||||||||||
| 1461TR34 | R3/4" | 150 | 15,0 | 9,0 | 12 | 46,4 | 10 |
