Male barb connector BSPT thread
Temperature Operating: from -20 ºC to 110 ºC
Working Pressure: 14 Bar
Technical data sheet: Download PDF
Construction Materials: nylon 66 ·
Usable tubes: polyethylene tube · polyurethane tube on polyester basis · polyurethane tube on polyether basis FDA · PVC transparent tube · silicone tube ·
Types Oring:
Compatible Fluids: compressed air · food fluids suitable with construction materials · water ·
References 5010

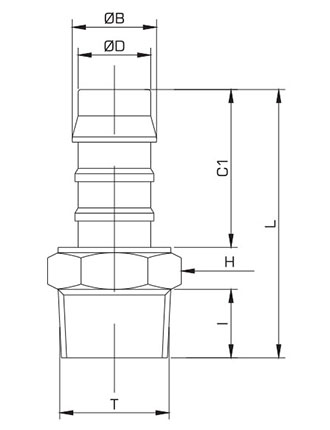

| Code | T | ØD | I | C1 | L | H (hex) | ØB - Barb | Weight | Q.TY | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5010TR119 | R1" | 19 | 21,0 | 31,0 | 62,0 | 27 | 21,0 | 18,8 | 25 | |||||||||||||||||||||
| 5010TR1210 | R1/2" | 10 | 12,5 | 27,0 | 48,0 | 22 | 12,0 | 6,0 | 50 | |||||||||||||||||||||
| 5010TR1212 | R1/2" | 12 | 12,5 | 28,0 | 49,0 | 22 | 14,0 | 7,0 | 50 | |||||||||||||||||||||
| 5010TR1214 | R1/2" | 14 | 12,5 | 29,5 | 50,5 | 22 | 16,2 | 7,0 | 50 | |||||||||||||||||||||
| 5010TR1216 | R1/2" | 16 | 12,5 | 30,0 | 51,0 | 22 | 18,2 | 8,0 | 50 | |||||||||||||||||||||
| 5010TR1219 | R1/2" | 19 | 12,5 | 31,0 | 52,0 | 22 | 21,0 | 9,0 | 50 | |||||||||||||||||||||
| 5010TR1410 | R1/4" | 10 | 10,0 | 27,0 | 44,0 | 14 | 12,0 | 1,0 | 50 | |||||||||||||||||||||
| 5010TR1412 | R1/4" | 12 | 10,0 | 28,0 | 45,0 | 14 | 14,0 | 4,0 | 50 | |||||||||||||||||||||
| 5010TR144 | R1/4" | 4 | 10,0 | 16,0 | 33,5 | 14 | 5,2 | 1,2 | 50 | |||||||||||||||||||||
| 5010TR145 | R1/4" | 5 | 10,0 | 21,0 | 38,5 | 14 | 6,3 | 1,0 | 50 | |||||||||||||||||||||
| 5010TR146 | R1/4" | 6 | 10,0 | 23,0 | 40,5 | 14 | 8,0 | 2,0 | 50 | |||||||||||||||||||||
| 5010TR148 | R1/4" | 8 | 10,0 | 25,0 | 42,5 | 14 | 10,0 | 2,0 | 50 | |||||||||||||||||||||
| 5010TR184 | R1/8" | 4 | 8,0 | 16,0 | 30,5 | 11 | 5,2 | 1,0 | 50 | |||||||||||||||||||||
| 5010TR185 | R1/8" | 5 | 8,0 | 21,0 | 35,5 | 11 | 6,3 | 1,0 | 50 | |||||||||||||||||||||
| 5010TR186 | R1/8" | 6 | 8,0 | 23,0 | 37,5 | 11 | 8,0 | 1,0 | 50 | |||||||||||||||||||||
| 5010TR188 | R1/8" | 8 | 8,0 | 25,0 | 39,5 | 11 | 10,0 | 2,0 | 50 | |||||||||||||||||||||
| 5010TR3410 | R3/4" | 10 | 14,5 | 27,0 | 50,0 | 27 | 12,0 | 9,1 | 25 | |||||||||||||||||||||
| 5010TR3412 | R3/4" | 12 | 14,5 | 28,0 | 51,0 | 27 | 14,0 | 9,2 | 25 | |||||||||||||||||||||
| 5010TR3414 | R3/4" | 14 | 14,5 | 29,5 | 52,5 | 27 | 16,2 | 9,8 | 25 | |||||||||||||||||||||
| 5010TR3416 | R3/4" | 16 | 14,5 | 30,0 | 53,0 | 27 | 18,2 | 10,0 | 25 | |||||||||||||||||||||
| 5010TR3419 | R3/4" | 19 | 14,5 | 31,0 | 54,0 | 27 | 21,0 | 15,0 | 25 | |||||||||||||||||||||
| 5010TR346 | R3/4" | 6 | 14,5 | 23,0 | 46,0 | 22 | 8,0 | 8,2 | 25 | |||||||||||||||||||||
| 5010TR3810 | R3/8" | 10 | 10,0 | 27,0 | 44,0 | 17 | 12,0 | 4,0 | 50 | |||||||||||||||||||||
| 5010TR3812 | R3/4" | 12 | 10,0 | 28,0 | 45,0 | 17 | 14,0 | 4,0 | 50 | |||||||||||||||||||||
| 5010TR3814 | R3/8" | 14 | 10,0 | 29,5 | 47,0 | 17 | 16,2 | 6,0 | 50 | |||||||||||||||||||||
| 5010TR386 | R3/8" | 6 | 10,0 | 23,0 | 40,5 | 17 | 8,0 | 3,0 | 50 | |||||||||||||||||||||
| 5010TR388 | R3/8" | 8 | 10,0 | 25,0 | 42,5 | 17 | 10,0 | 3,0 | 50 | |||||||||||||||||||||
| 5010TR125 | R1/2" | 5 | 10,0 | 21,0 | 41,4 | 22 | 6,3 | 1,0 | 25 | |||||||||||||||||||||
| 5010TR126 | R1/2" | 6 | 12,5 | 23,0 | 44,0 | 22 | 8,0 | 6,0 | 50 | |||||||||||||||||||||
| 5010TR128 | R1/2" | 8 | 12,5 | 25,0 | 46,0 | 22 | 10,0 | 6,0 | 50 | |||||||||||||||||||||
| 5010TR348 | R3/4" | 8 | 12,5 | 25,0 | 47,1 | 27 | 10,0 | 6,0 | 25 |
