MINI connection with barb connector
Temperature Operating: from -20 ºC to 100 ºC
Working Pressure: 35 Bar
Technical data sheet: Download PDF
Construction Materials:
Usable tubes:
Types Oring:
Compatible Fluids:
References AMN-E

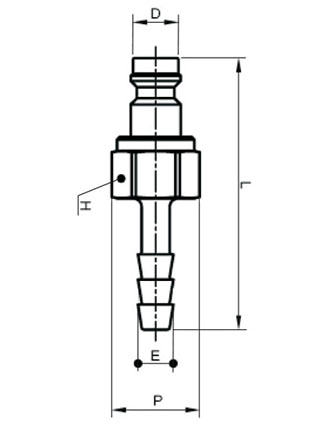

| Code | E | P | L | D | H | Q.TY | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AMN-E6-L | 6,3 | 15,7 | 44,1 | 8,1 | 14 | 1 | ||||||||||||||||||||||||
| AMN-E8-L | 8,3 | 15,7 | 44,1 | 8,1 | 14 | 1 |
